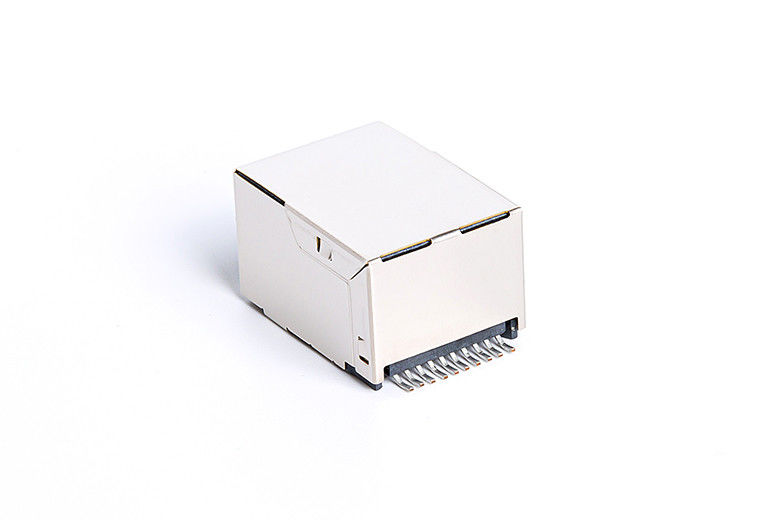

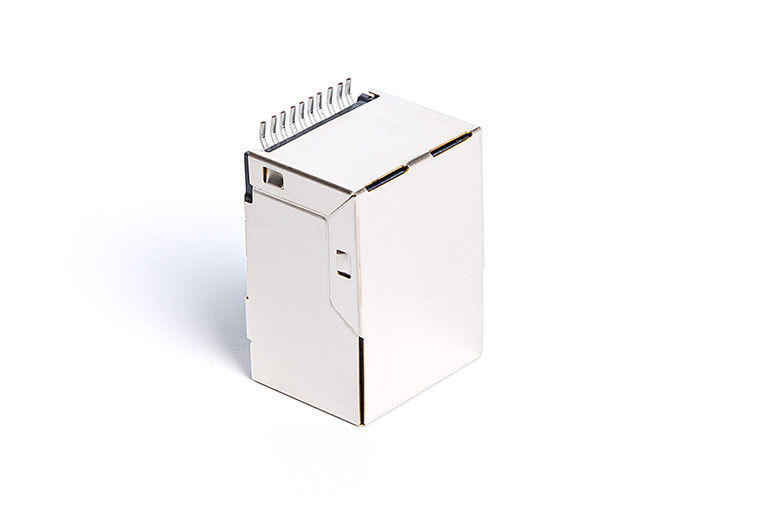

Modular SMT RJ45 Jack Without Integrated Transformer Magnetics 180° Orientation Top Entry
Contact Person : David
Phone Number : 15972107349
| Minimum Order Quantity : | 500 piece | Price : | Supportive |
|---|---|---|---|
| Packaging Details : | Tray in Carton | Delivery Time : | 3 work days |
| Payment Terms : | T/T, Western Union, ,Paypal | Supply Ability : | 100kpcs /day |
| Place of Origin: | Guangdong of China | Brand Name: | TM |
|---|---|---|---|
| Certification: | UL,Rohs,Reach,ISO9001 | Model Number: | TM811BD2AAB016007 |
|
Detail Information |
|||
| NUMBER OF PORTS: | 1X1 | LED OPTION: | N/A |
|---|---|---|---|
| LENGTH: | 23mm | HOUSING MATERIAL: | PBT UL94V-0 |
| CONTACT MATING AREA PLATING: | GOLD 6U'' PLATING | CONNECTOR TYPE: | BLACK |
| NUMBER OF CONTACTS: | 8 | GROUNDING OPTIONS: | Panel Ground And PCB Ground |
| SHIELD PLATING MATERIAL: | NICKEL | SHIELD EMI TABS: | No |
| SHIELD: | YES | PANEL STOP: | YES |
| PCB MOUNT ANGLE: | SIDE ENTRY | PACKAGE: | SMD |
| CONNECTOR & CONTACT TERMINAATES TO: | Printed Circuit Board | ||
| Highlight: | rj45 8p8c jack,shielded rj45 jack |
||
Product Description
LATCH Up SMT 10/100 Shield Magnetic RJ45 Jack Single Port Tab Up With LED DIP Mounting TM811BD2AAB016007
RJ45 Without Transformer (TM811BD2AAB016007) Attributes:
| Model Number | TM811BD2AAB016007 |
| LENGTH | 23mm |
| HOUSING MATERIAL | PBT UL94V-0 |
| CONTACT MATING AREA PLATING | GOLD 6U'' PLATING |
| CONNECTOR TYPE | RJ45 |
| CONNECTOR MATERIAL COLOR | BLACK |
| LED OPTION | N/A |
| NUMBER OF PORTS | 1X1 |
| NUMBER OF CONTACTS | 8 |
| GROUNDING OPTIONS | Panel Ground and PCB Ground |
| SHIELD PLATING MATERIAL | NICKEL |
| SHIELD EMI TABS | No |
| SHIELD | YES |
| ROHS COMPLIANT | YES |
| PANEL STOP | YES |
| PCB MOUNT ANGLE | SIDE ENTRY |
| PACKAGE | SMD |
| CONNECTOR & CONTACT TERMINAATES TO | Printed Circuit Board |
| LATCH ORIENTATION | LATCH Up |
RJ45 Female Connector (TM811BD2AAB016007) Applications:
10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone,internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,
HomePNA,DSL／ADSL and so on.
RJ45 Female Connector (TM811BD2AAB016007) Mechnical Drawing:
