Modular SMT RJ45 Jack Without Integrated Transformer Magnetics 180° Orientation Top Entry
Contact Person : David
Phone Number : 15972107349
| Minimum Order Quantity : | 500/1000/2000 pcs | Price : | Supportive |
|---|---|---|---|
| Packaging Details : | 100pcs/tray | Delivery Time : | 20 Days |
| Payment Terms : | T/T, Western Union,Paypal | Supply Ability : | 500K/year |
| Place of Origin: | Guangdong of China | Brand Name: | TM |
|---|---|---|---|
| Certification: | UL,Rohs,Reach,ISO9001 | Model Number: | TM5JS811EXX15 |
|
Detail Information |
|||
| Product Type: | RJ45 Modular Connector | Jack Type: | RJ45 |
|---|---|---|---|
| Number Of Positions: | 8 | Terminals Per Port: | 8 |
| Shielded EMI Tabs: | No | Voltage Rating: | 125 V |
| Current Rating: | 1.5 A | Contact Resistance: | 30mΩ |
| Insulation Resistance: | 500 MΩ MIN @ 500V DC | Dielectric Resistance: | 1000V AC RMS 50Hz. 1MIN |
| Durrability: | 750 CYCLES MIN | Package: | 180pcs/tray,900pcs/carton |
| Highlight: | rj45 female connector,surface mount rj45 plug,125 Volt Ethernet Shielded RJ45 Jack |
||
Product Description

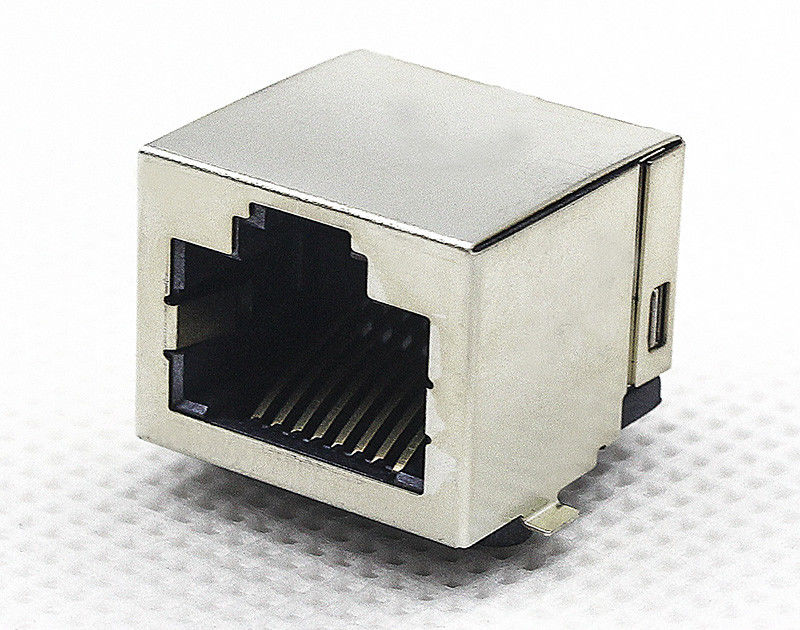

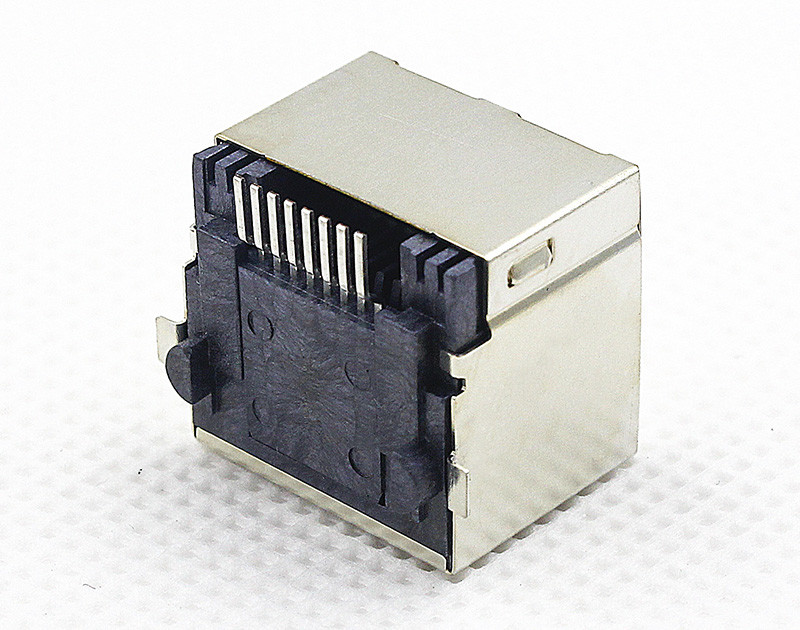

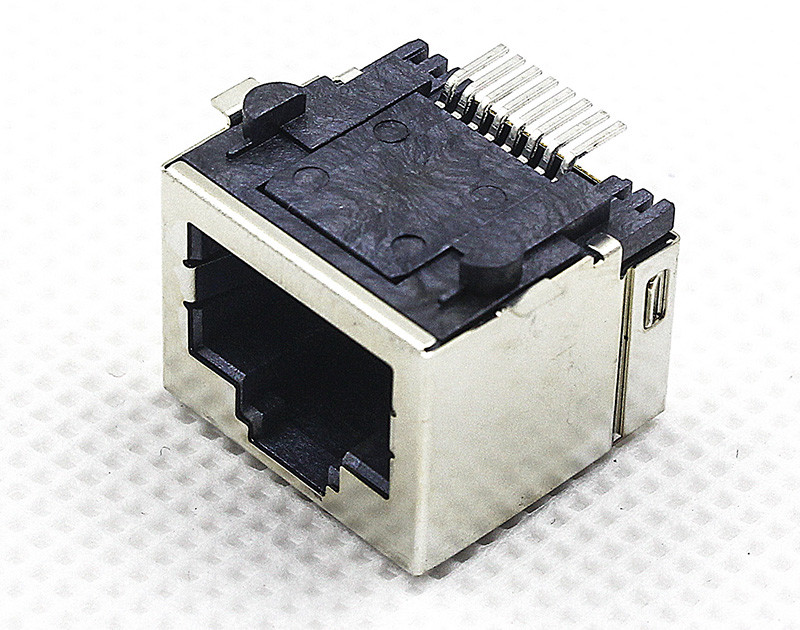

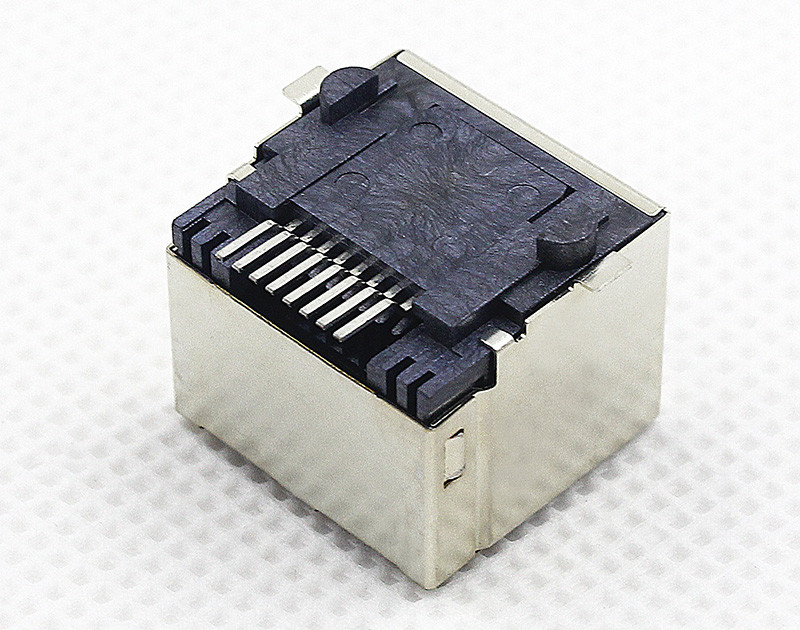

SMT RJ45 low profile ethernet connector Single Port Tab Up with shield TM5JS811EXX15
Materials:
Housing : LCP,UL94V-0 ( RoHS )
Contact Finish: T=0.35 mm GOLD PLATING FU" OVER NICKEL IN CONTACT TIN PLATING OVER NICKEL IN SOLDER AREA.( RoHS )
Shielding Shell: 0.20mm THICKNESS COPPER ALLOY WITH NICKEL PLATED.
All materials mates with modulat plug conforming to FCC part 68. subpart F.
Product Structure:
RJ45 Jack
1 x 1 Port / Single Port / SMT Port
Latch Up
Connector Length: 15.5 mm
Connector Width: 16.45 mm
Connector Height: 13.40 mm
Connector Peg Height: 1.3 mm
Termimal Solder Pin Length: 0.75 mm
8P8C ( 8 positions 8 contacts )
90°Orientation
Without, let know the connection status
With Shield,can be customized as required
We Support Custom service as required
RJ45 Without Transformer (TM5JS811EXX15) Attributes:
| Model: | TM5JS811EXX15 |
| Place of Origin: | Guangdong of China |
| Certification: | UL,Rohs,Reach,ISO9001 |
| Product Type : | RJ45 Modular Connector |
| Jack Type: | RJ45 |
| Number of Positions : | 8 |
| Terminals per Port: | 8 |
| LED Option: | NO |
| Shielded EMI Tabs: | No |
| Voltage rating: | 125 V |
| Current rating: | 1.5 A |
| Contact resistance: | 30mΩ |
| Insulation resistance: | 500 MΩ MIN @ 500V DC |
| Dielectric resistance: | 1000V AC RMS 50Hz. 1MIN |
| Durrability: | 750 CYCLES MIN |
| Minimal Order: | 900pcs |
| Package: | 180pcs/tray,900pcs/carton |
| Carton size: | 39*39*34.5cm |
| Delivery Time: | 20 Days |
| Payment Terms: | |
| Supply Ability: | 5KK/year |
RJ45 Female Connector (TM5JS811EXX15) Mechnical Drawing:
