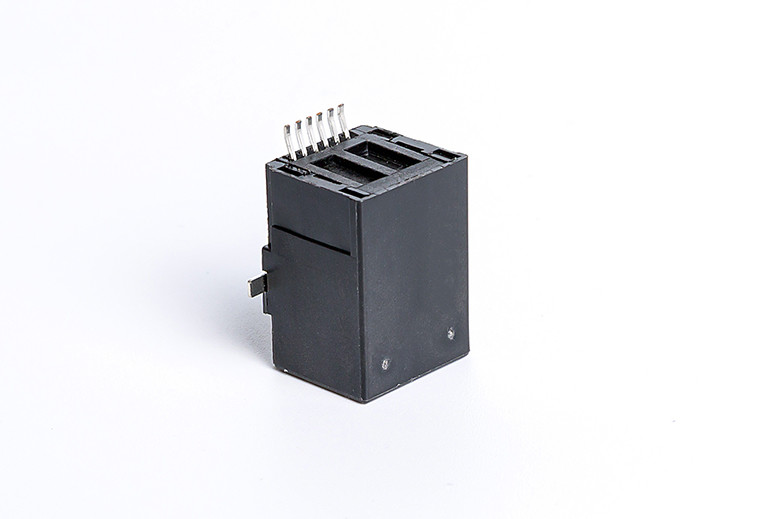

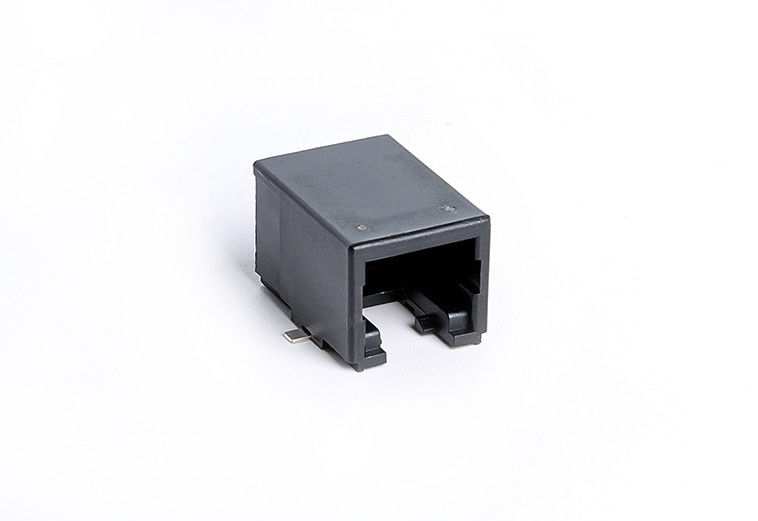

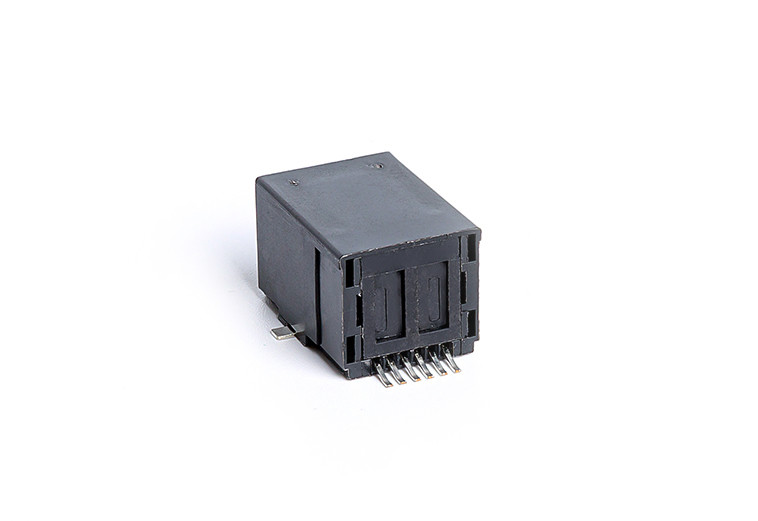

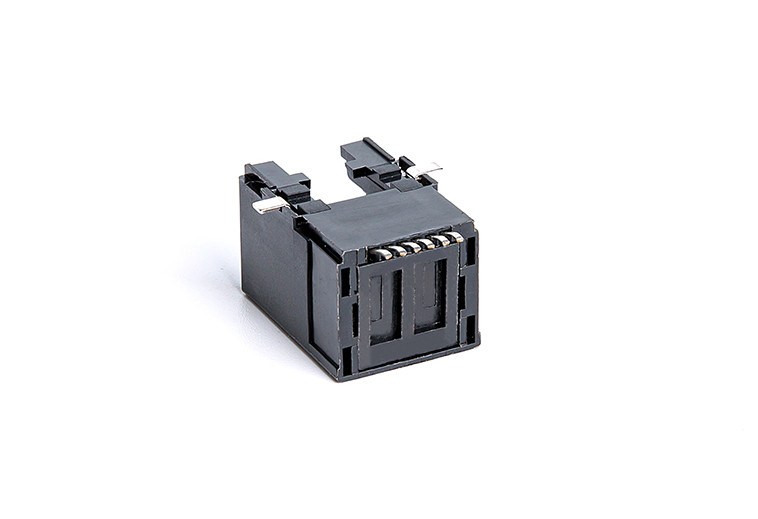

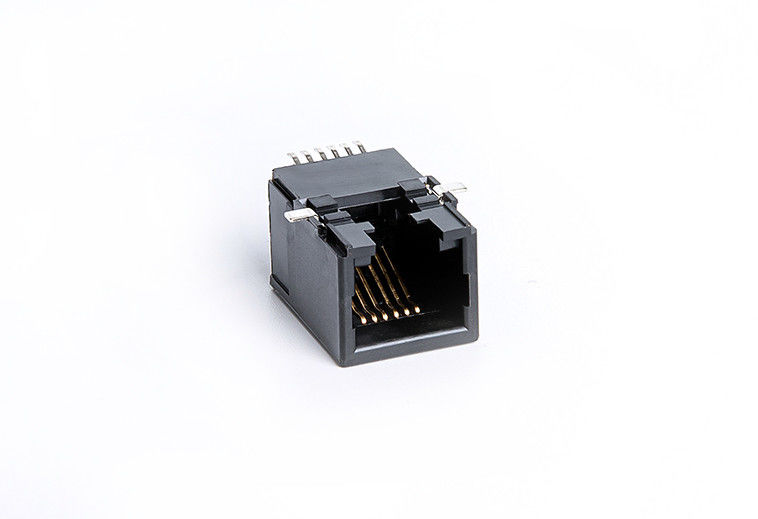

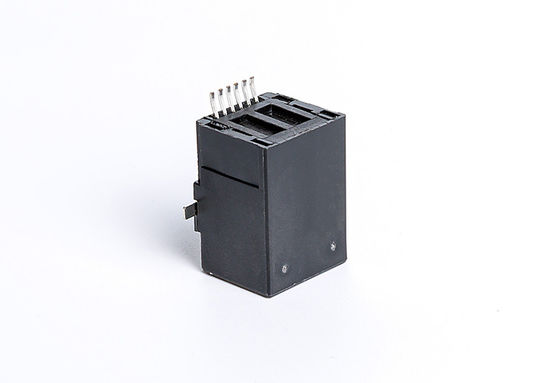

6 PIN Rj11 Modular Jack Black Unshielded Plastic Housing FR52 UL94V-0 Right Angle TM56S511SXX41

Contact Now

6 PIN Rj11 Modular Jack Black Unshielded Plastic Housing FR52 UL94V-0 Right Angle TM56S511SXX41

Name: 6 PIN Rj11 Modular Jack Black Unshielded Plastic Housing FR52 UL94V-0 Right Angle TM56S511SXX41
Brand: TM
SKU: TM56S511SXX41
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (126 reviews)

Minimum Order Quantity :	500/1000/2000 pcs	Price :	Supportive
Packaging Details :	200pcs/tray,1600pcs/carton	Delivery Time :	15 Days
Payment Terms :	T/T, Western Union, ,Paypal	Supply Ability :	500K/year

Place of Origin:	Guangdong of China	Brand Name:	TM
Certification:	UL,Rohs,Reach,ISO9001	Model Number:	TM56S511SXX41

Detail Information
Product Type :	RJ11 Modular Connector	Jack Type:	RJ11
Number Of Positions:	6	Terminals Per Port:	6
LED Option:	No	Shielded EMI Tabs:	No
Current Rating:	1.5 A	Contact Resistance:	30mΩ
Insulation Resistance:	500 MΩ MIN @ 500V DC	Dielectric Resistance:	1000V AC RMS 50Hz. 1MIN
Durrability:	750 CYCLES MIN	Minimal Order:	1pcs
Package:	200pcs/tray,1600pcs/carton
High Light:	rj45 female connector , surface mount rj45 plug

Product Description

6 PIN SMT Female Rj11 Modular Connector Black Unshielded Plastic Housing FR52,UL94V-0 Right Angle type TM56S511SXX41

Materials:

Housing : FR52,UL94V-0 ( RoHS )

Contact Finish: T=0.35 mm GOLD PLATING 6U" OVER NICKEL IN CONTACT TIN PLATING OVER NICKEL IN SOLDER AREA.( RoHS )

Shielding Shell: No.

All materials mates with modulat plug conforming to FCC part 68. subpart F.

Product Structure:

1 x 1 Port / Single Port / SMT Port

Connector Length: 18.1 mm

Connector Width: 12.96 mm

Connector Height: 11.50 mm

Termimal Solder Pin Length: 2.5 mm

6P6C ( 6 positions 6 contacts )

90°Orientation

Without LED, let know the connection status

Without Shield,can be customized as required

We Support Custom service as required

RJ11 Without Transformer (TM56S511SXX41) Attributes:

Model:	TM56S511SXX41
Place of Origin:	Guangdong of China
Certification:	UL,Rohs,Reach,ISO9001
Product Type :	RJ11 Modular Connector
Jack Type:	RJ11
Number of Positions :	6
Terminals per Port:	6
LED Option:	NO
Shielded EMI Tabs:	No
Voltage rating:	125 V
Current rating:	1.5 A
Contact resistance:	30mΩ
Insulation resistance:	500 MΩ MIN @ 500V DC
Dielectric resistance:	1000V AC RMS 50Hz. 1MIN
Durrability:	750 CYCLES MIN
Minimal Order:	1pcs
Package:	200pcs/tray,1600pcs/carton
Carton size:	353540cm
Delivery Time:	20 Days
Supply Ability:	5KK/year

RJ11 Female Connector () Mechnical Drawing:
