Modular SMT RJ45 Jack Without Integrated Transformer Magnetics 180° Orientation Top Entry
Contact Person : David
Phone Number : 15972107349
| Minimum Order Quantity : | 500 piece | Price : | Supportive |
|---|---|---|---|
| Packaging Details : | 100pcs/tray,3000pcs/carton | Delivery Time : | 15 days |
| Payment Terms : | T/T, Western Union, ,Paypal | Supply Ability : | 100kpcs /day |
| Place of Origin: | Guangdong of China | Brand Name: | TM |
|---|---|---|---|
| Certification: | UL,Rohs,Reach,ISO9001 | Model Number: | TMCPS811EXX11 |
|
Detail Information |
|||
| PACKAGE: | DIP | LENGTH: | 13.5 Mm |
|---|---|---|---|
| Delivery Time: | 20 Days | HOUSING MATERIAL: | PA66 |
| CONTACT MATING AREA PLATING: | GOLD 6U'' PLATING | CONNECTOR TYPE: | BLACK |
| LED OPTION: | N/A | NUMBER OF PORTS: | 1X1 |
| NUMBER OF CONTACTS: | 8 | SHIELD PLATING MATERIAL: | THICKNESS SUS201 |
| SHIELD EMI TABS: | NO | SHIELD: | YES |
| PCB MOUNT ANGLE: | SIDE ENTRY | LATCH ORIENTATION: | LATCH UP |
| Voltage Rating: | 125 V | Current Rating: | 1.5 A |
| Contact Resistance: | 30mΩ | Dielectric Resistance: | 1000V AC RMS 50Hz. 1MIN |
| Durrability: | 750 CYCLES MIN | Minimal Order: | 1200pcs |
| Package: | 100pcs/tray,3000pcs/carton | Supply Ability: | 5KK/year |
| Highlight: | rj45 8p8c jack,rj45 modular socket |
||
Product Description

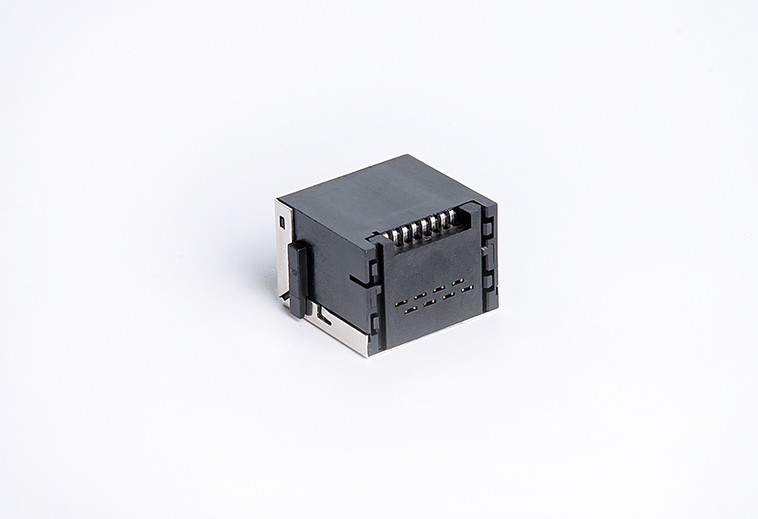

Copper Alloy Shield Single Port Rj45 Panel Stop Connector , Tab Up 8P8C SMT Rj45 Jack Without LED TMCPS811EXX1
Product Structure:
1 x 1 Port / Single Port / SMT Port
Connector Length: 13.5 mm
Connector Width: 14.20 mm
Connector Height: 10.40 mm
Wire diameter: 1.0mm
8P8C ( 8 positions 8 contacts )
90°Orientation
Without LED, let know the connection status
With Shield,can be customized as required
We Support Custom service as required
RJ45 Without Transformer (TMCPS811EXX11) Attributes:
| Model: | TMCPS811EXX11 |
| Place of Origin: | Guangdong of China |
| Certification: | UL,Rohs,Reach,ISO9001 |
| Product Type : | RJ45 Modular Connector |
| Jack Type: | RJ45 |
| Number of Positions : | 8 |
| Terminals per Port: | 8 |
| LED Option: | No |
| Shielded EMI Tabs: | No |
| Voltage rating: | 125 V |
| Current rating: | 1.5 A |
| Contact resistance: | 30mΩ |
| Insulation resistance: | 500 MΩ MIN @ 500V DC |
| Dielectric resistance: | 1000V AC RMS 50Hz. 1MIN |
| Durrability: | 750 CYCLES MIN |
| Minimal Order: | 1200pcs |
| Package: | 100pcs/tray,3000pcs/carton |
| Delivery Time: | 20 Days |
| Supply Ability: |
5KK/year |
RJ45 Female Connector (TMCPS811EXX11) Mechnical Drawing:
