Magjacc SMT RJ45 Jack Module / Surface Mount Rj45 Plug TM56S011EXX45
Magjacc SMT RJ45 Jack Module / Surface Mount Rj45 Plug TM56S011EXX45 Magjacc SMT RJ45 Jack Module / Surface Mount Rj45 Plug TM56S011EXX45 Magjacc SMT RJ45 Jack Module / Surface Mount Rj45 Plug TM56S011EXX45 Magjacc SMT RJ45 Jack Module / Surface Mount Rj45 Plug TM56S011EXX45
Contact Now

Magjacc SMT RJ45 Jack Module / Surface Mount Rj45 Plug TM56S011EXX45

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 90pcs/tray,2340pcs/carton Delivery Time : 20Days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TM56S011EXX45

Detail Information
Product Type : RJ45 Modular Connector Jack Type: RJ50 Modular Connector
Number Of Positions: 10 Terminals Per Port: 10
LED Option: No Shielded EMI Tabs: No
Voltage Rating: 125 V Current Rating: 1.5 A
Contact Resistance: 30mΩ Insulation Resistance: 500 MΩ MIN @ 500V DC
Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN Durrability: 750 CYCLES MIN
Minimal Order: 500PCS Package: 120pcs/tray,1440pcs/carton
Keywords: Rj45 Connector/rj45 Female Connector/rj45 Jack/rj45 Socket
High Light:

rj45 smt connector

,

rj45 female connector

,

Magjacc SMT RJ45 Jack Module

Product Description

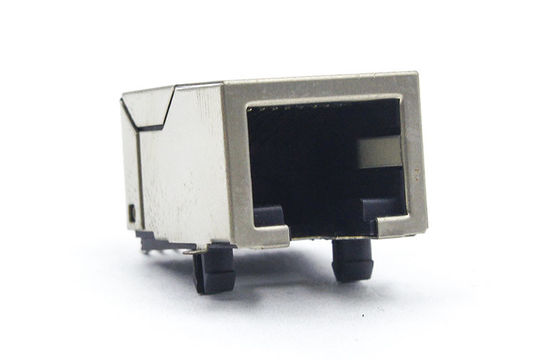

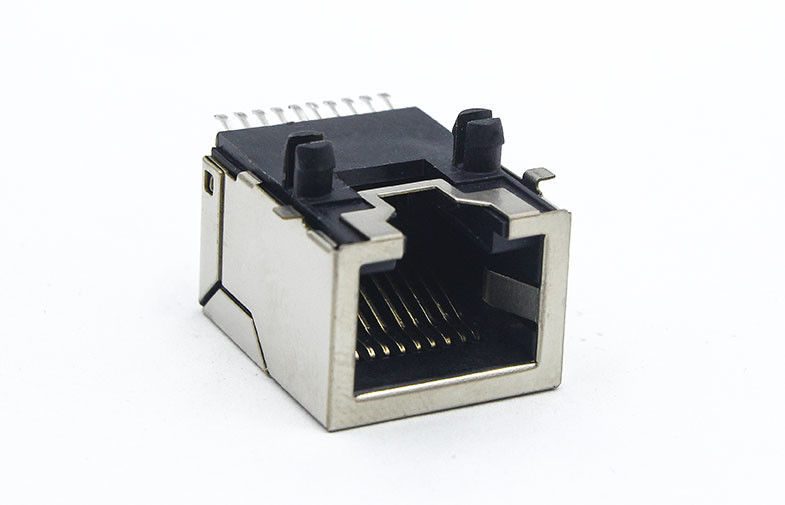

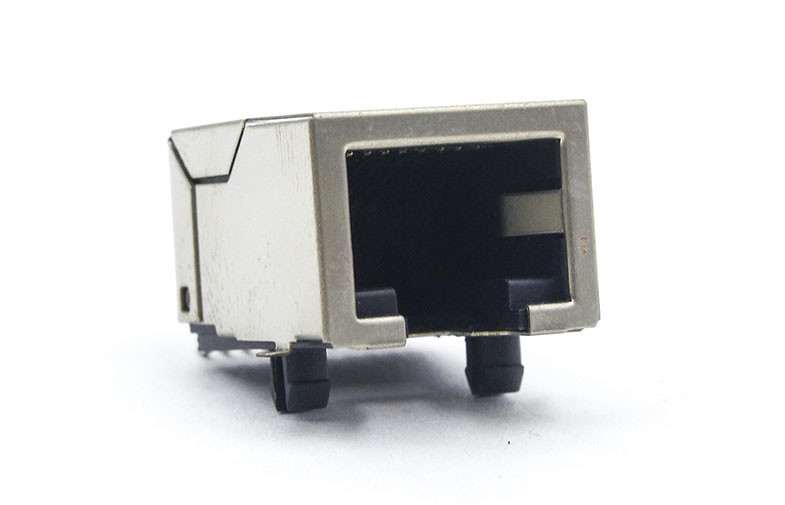

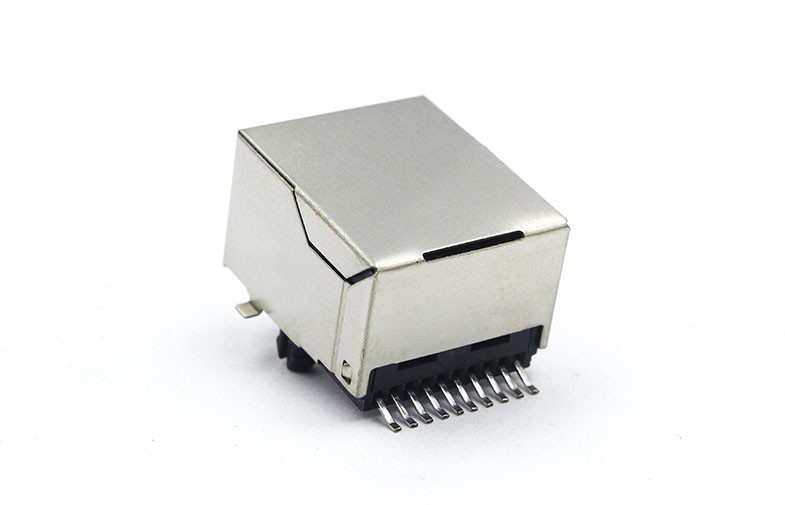

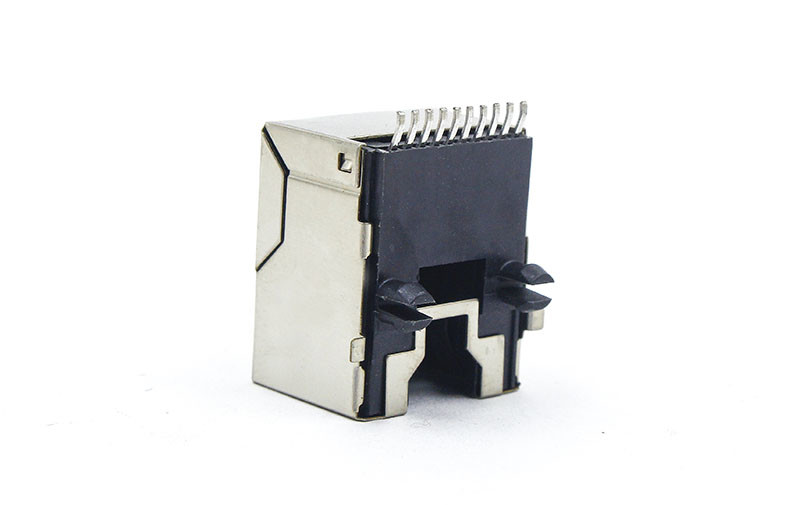

SMT 1x1 Port RJ45 Magjack low profile ethernet connector Without Magnetics TM56S011EXX45



Materials:



Housing : FR52,UL94V-0 ( RoHS )
Contact Finish: T=0.35 mm GOLD PLATING 6U" OVER NICKEL IN CONTACT TIN PLATING OVER NICKEL IN SOLDER AREA.( RoHS )
Shielding Shell: 0.20mm THICKNESS COPPER ALLOY WITH NICKEL PLATED.
All materials mates with modulat plug conforming to FCC part 68. subpart F.


Product Structure:


RJ45 Jack
1 x 1 Port / Single Port / SMT Port
Latch Down
Connector Length: 18.65 mm
Connector Width: 15.74 mm
Connector Height: 11.75 mm
Termimal Solder Pin Length: 2.5 mm
10P10C ( 10 positions 10 contacts )
90°Orientation
Without, let know the connection status
With Shield,can be customized as required
We Support Custom service as required



RJ45 Without Transformer (TM56S011EXX45) Attributes:



Model: TM56S011EXX45
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ50 Modular Connector
Jack Type: RJ50
Number of Positions : 10
Terminals per Port: 10
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Package: 120pcs/tray,1440pcs/carton
Carton size: 33*33*21cm
Delivery Time: 20 Days
Supply Ability: 5KK/year



RJ45 Female Connector (TM56S011EXX45) Mechnical Drawing:
