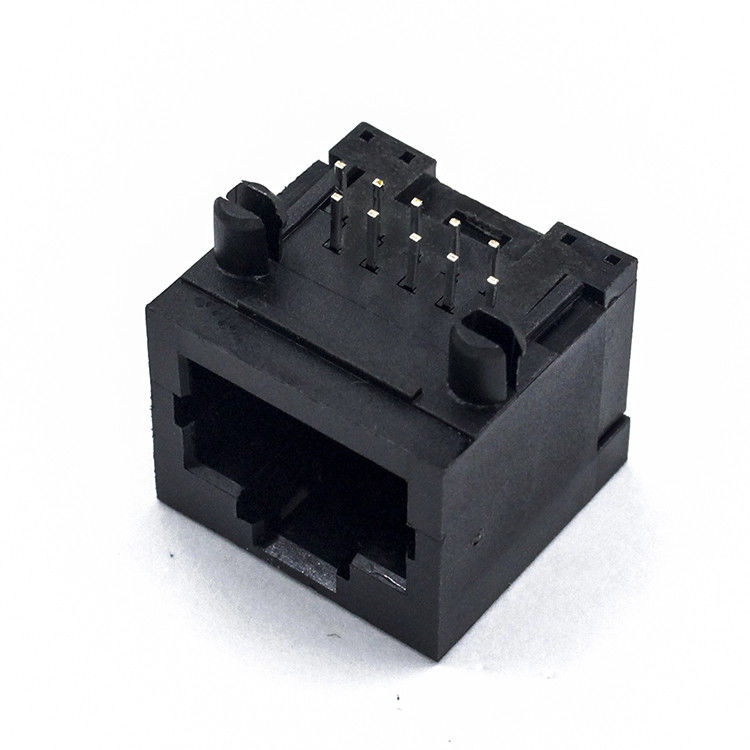

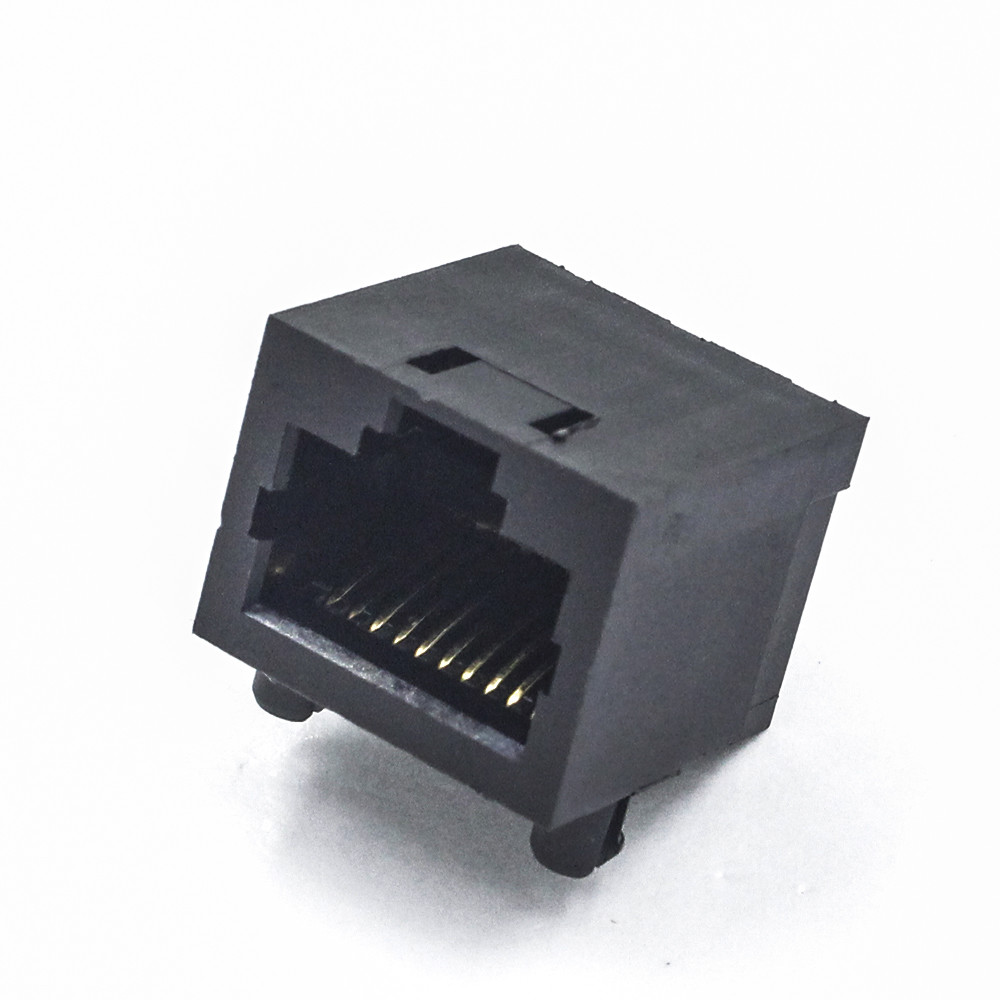

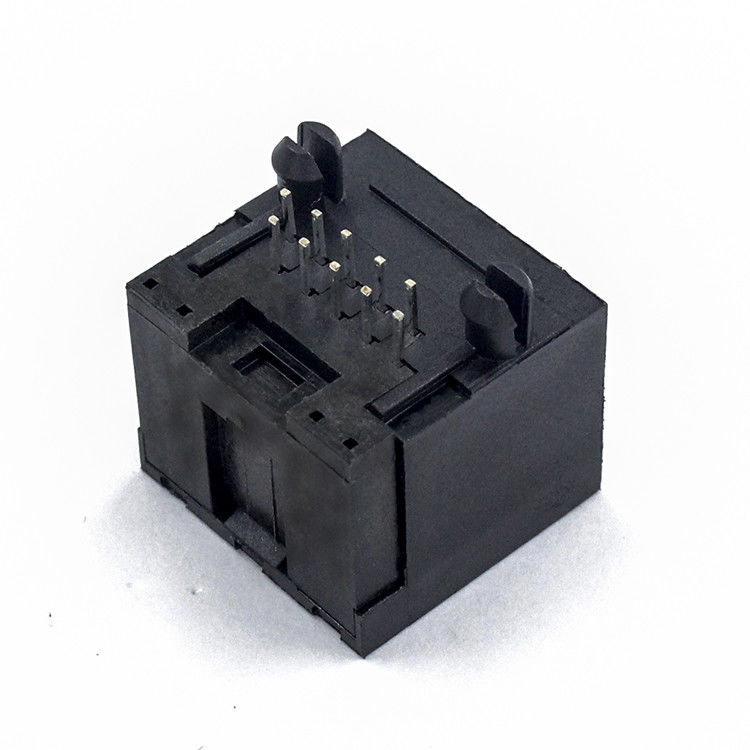

Unshielded 10 Pin RJ45 Connector / Rj45 Jack Female Without Magnetic 15.15 mm TM55T011EXX41

Name: Unshielded 10 Pin RJ45 Connector / Rj45 Jack Female Without Magnetic 15.15 mm TM55T011EXX41
Brand: TM
SKU: TM55T011EXX41
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (150 reviews)

Minimum Order Quantity :	500/1000/2000 pcs	Price :	Supportive
Packaging Details :	90pcs/tray,1800pcs/carton	Delivery Time :	20Days
Payment Terms :	T/T, Western Union, ,Paypal	Supply Ability :	500K/year

Place of Origin:	Guangdong of China	Brand Name:	TM
Certification:	UL,Rohs,Reach,ISO9001	Model Number:	TM55T011EXX41

Detail Information
Shielded EMI Tabs:	No	Current Rating:	1.5 A
Number Of Positions:	10	Terminals Per Port:	10
LED Option:	No	Voltage Rating:	125 V
Contact Resistance:	30mΩ	Insulation Resistance:	500 MΩ MIN @ 500V DC
Dielectric Resistance:	1000V AC RMS 50Hz. 1MIN	Durrability:	750 CYCLES MIN
Minimal Order:	500PCS	Package:	90pcs/tray,2340pcs/carton
Keywords:	10 Pin Rj45 Connector/rj45 Female Connector/rj45 Jack/rj45 Socket
High Light:	10 pin ethernet connector , rj45 network jack , Unshielded 10 Pin RJ45 Connector

Product Description

Unshielded 10 Pin RJ45 Connector / Rj45 Jack Female Without Magnetic 15.15 mm TM55T011EXX41

Materials:
Housing : PBT,UL94V-0 ( RoHS )
Contact Finish: T=0.35mm Phosphor Bronze,CONTACT AREA-SELECTIVE GOLD PLATING 6u”,TAILS PLATING TIN OVER NICKEL( RoHS )
Shielding Shell: NO
All materials mates with modulat plug conforming to FCC part 68. subpart F.

Product Structure:
RJ45 Jack
1 x 1 Port / Single Port / One Port
Latch Down
Connector Length: 15.15 mm
Connector Width: 15.91 mm
Connector Height: 13.15 mm
Termimal Solder Pin Length: 2.62 mm
10P10C ( 10 positions 10 contacts )
90°Orientation
Without LED, let know the connection status
Without Shield,can be customized as required
We Support Custom service as required

RJ45 Without Transformer (TM55T011EXX41) Attributes:

Model:	TM55T011EXX41
Place of Origin:	Guangdong of China
Certification:	UL,Rohs,Reach,ISO9001
Product Type :	RJ45 Modular Connector
Jack Type:	RJ45
Number of Positions :	10
Terminals per Port:	10
LED Option:	No
Shielded EMI Tabs:	No
Voltage rating:	125 V
Current rating:	1.5 A
Contact resistance:	30mΩ
Insulation resistance:	500 MΩ MIN @ 500V DC
Dielectric resistance:	1000V AC RMS 50Hz. 1MIN
Durrability:	750 CYCLES MIN
Minimal Order:	1pcs
Package:	90pcs/tray,2340pcs/carton
Delivery Time:	20 Days
Supply Ability:	5KK/year

RJ45 Female Connector (TM55T011EXX41) Mechnical Drawing:

Unshielded 10 Pin RJ45 Connector / Rj45 Jack Female Without Magnetic 15.15 mm TM55T011EXX41 0
