14.80mm 10 Pin Ethernet Connector Without Led And Transformer Pbt Ul94v-0

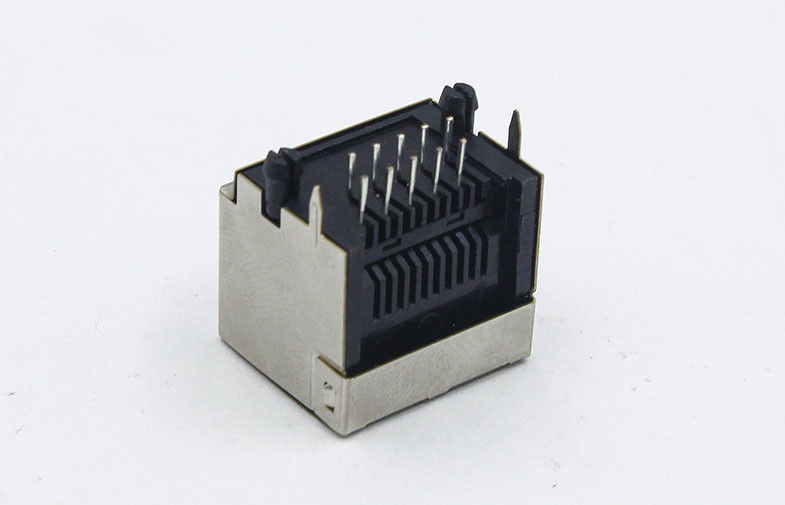

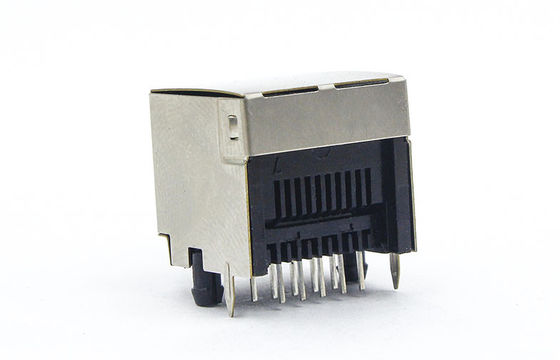

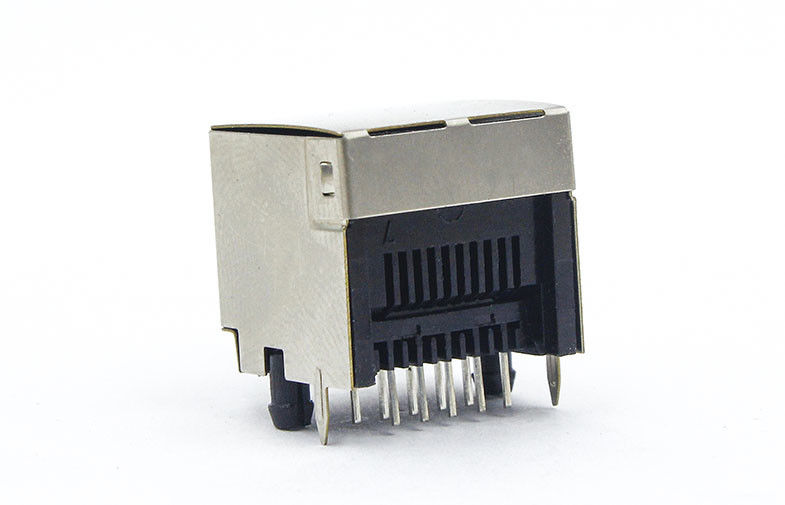

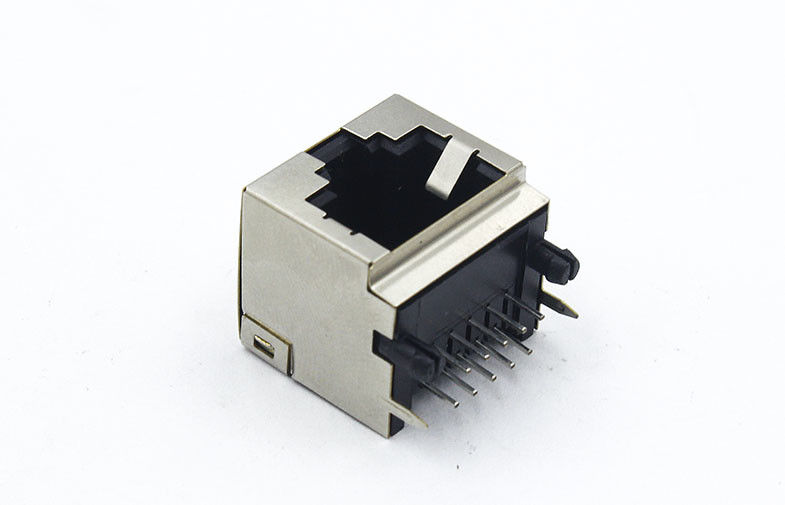

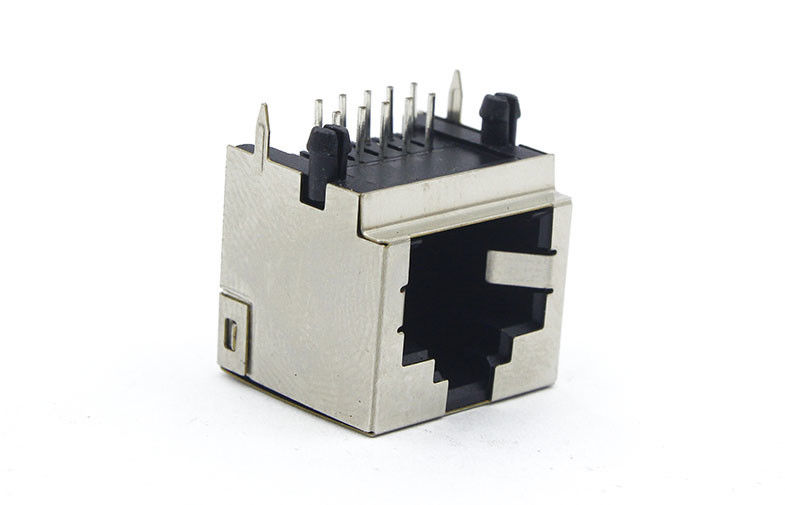

14.80mm 10 Pin Ethernet Connector Without Led And Transformer Pbt Ul94v-0 14.80mm 10 Pin Ethernet Connector Without Led And Transformer Pbt Ul94v-0 14.80mm 10 Pin Ethernet Connector Without Led And Transformer Pbt Ul94v-0 14.80mm 10 Pin Ethernet Connector Without Led And Transformer Pbt Ul94v-0
Contact Now

14.80mm 10 Pin Ethernet Connector Without Led And Transformer Pbt Ul94v-0

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 90pcs/tray,2340pcs/carton Delivery Time : 20Days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TM55T011EXX41

Detail Information
Shielded EMI Tabs: No Voltage Rating: 125 V
Current Rating: 1.5 A Contact Resistance: 30mΩ
Insulation Resistance: 500 MΩ MIN @ 500V DC Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN Minimal Order: 500PCS
Package: 90pcs/tray,2340pcs/carton Keywords: Rj45 Connector/rj45 Female Connector/rj45 Jack/rj45 Socket
High Light:

10 pin ethernet connector

,

cat5e rj45 connector

,

10 Pin Ethernet Connector Without LED

Product Description

14.80mm 10 pin rj45 pbt ul94v-0 rj45 female connector Without Led and transformer TM55T011EXX41



Materials:



Housing : PBT,UL94V-0 ( RoHS )
Contact Finish: T=0.35mm Phosphor Bronze,CONTACT AREA-SELECTIVE GOLD PLATING 6u”,TAILS PLATING TIN OVER NICKEL( RoHS )
Shielding Shell: 0.2 mm thickness Copper alloy with Nickel Plating over all
All materials mates with modulat plug conforming to FCC part 68. subpart F.


Product Structure:


RJ45 Jack
1 x 1 Port / Single Port / One Port
Latch Down
Connector Length: 14.80 mm
Connector Width: 16.80 mm
Connector Height: 14.90 mm
Termimal Solder Pin Length: 3.2 mm
10P10C ( 10 positions 10 contacts )
90°Orientation
Without LED, let know the connection status
With Shield,can be customized as required
We Support Custom service as required


RJ45 Without Transformer (TM55T011EXX41) Attributes:



Model: TM55T011EXX41
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Modular Connector
Jack Type: RJ45
Number of Positions : 10
Terminals per Port: 10
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Package: 90pcs/tray,2340pcs/carton
Delivery Time: 20 Days
Supply Ability: 5KK/year



RJ45 Female Connector (TM55T011EXX41) Mechnical Drawing:

14.80mm 10 Pin Ethernet Connector Without Led And Transformer Pbt Ul94v-0 014.80mm 10 Pin Ethernet Connector Without Led And Transformer Pbt Ul94v-0 114.80mm 10 Pin Ethernet Connector Without Led And Transformer Pbt Ul94v-0 214.80mm 10 Pin Ethernet Connector Without Led And Transformer Pbt Ul94v-0 314.80mm 10 Pin Ethernet Connector Without Led And Transformer Pbt Ul94v-0 4
