10p10c 10 Pin Rj45 Connector / 1.5 A Rj45 Female Jack 750 Cycles Min Durrability
10p10c 10 Pin Rj45 Connector / 1.5 A Rj45 Female Jack 750 Cycles Min Durrability 10p10c 10 Pin Rj45 Connector / 1.5 A Rj45 Female Jack 750 Cycles Min Durrability
Contact Now

10p10c 10 Pin Rj45 Connector / 1.5 A Rj45 Female Jack 750 Cycles Min Durrability

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 90pcs/tray,2340pcs/carton Delivery Time : 20Days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TM52D011SXX42

Detail Information
Product Type : RJ45 Modular Connector Jack Type: RJ45
Number Of Positions: 10 Terminals Per Port: 10
LED Option: No Shielded EMI Tabs: No
Voltage Rating: 125 V Current Rating: 1.5 A
Contact Resistance: 30mΩ Insulation Resistance: 500 MΩ MIN @ 500V DC
Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN Durrability: 750 CYCLES MIN
Minimal Order: 500PCS Package: 90pcs/tray,2340pcs/carton
High Light:

10 pin ethernet connector

,

cat5e rj45 connector

,

1.5 A RJ45 Female Jack

Product Description

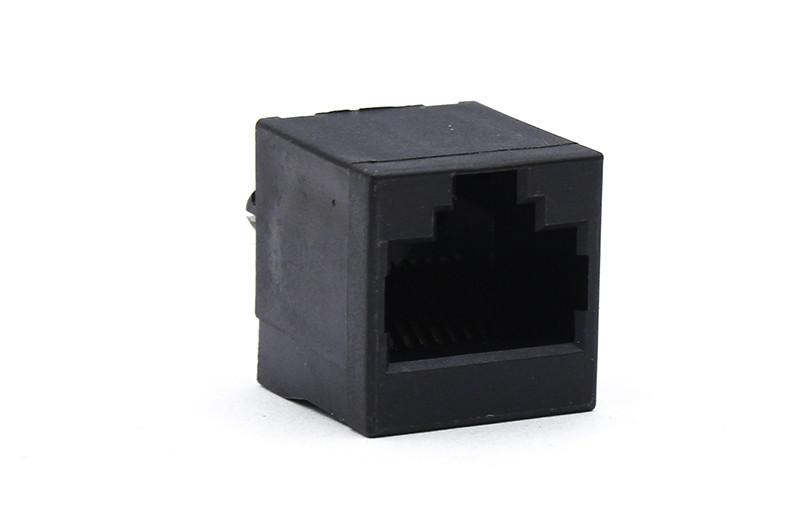

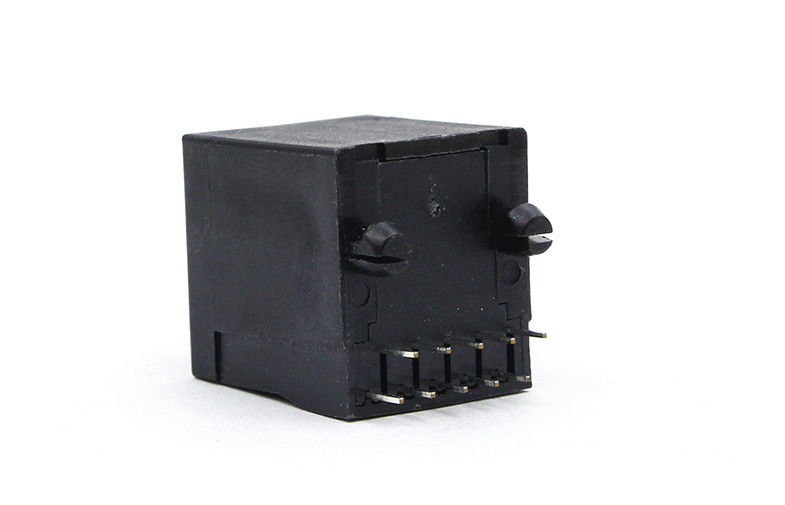

One Port 10 positions 10 contacts RJ45 Connector Without Shield and transformer TM52D011SXX42



Materials:



Housing : PBT,UL94V-0 ( RoHS )
Contact Finish: T=0.35mm Phosphor Bronze,CONTACT AREA-SELECTIVE GOLD PLATING 6u”,TAILS PLATING TIN OVER NICKEL( RoHS )
Shielding Shell: without
All materials mates with modulat plug conforming to FCC part 68. subpart F.


Product Structure:


RJ45 Jack
1 x 1 Port / Single Port / One Port
Connector Length: 16.29 mm
Connector Width: 15.26 mm
Connector Height: 15.78 mm
Termimal Solder Pin Length: 3.2 mm
10P10C ( 10 positions 10 contacts )
180°Orientation
Without LED, let know the connection status
Without Shield,can be customized as required
We Support Custom service as required



RJ45 Without Transformer (TM52D011SXX42) Attributes:



Model: TM52D011SXX42
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Modular Connector
Jack Type: RJ45
Number of Positions : 10
Terminals per Port: 10
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Package: 90pcs/tray,2340pcs/carton
Delivery Time: 20 Days
Supply Ability: 5KK/year





RJ45 Female Connector (TM52D011SXX42) Mechnical Drawing:

10p10c 10 Pin Rj45 Connector / 1.5 A Rj45 Female Jack 750 Cycles Min Durrability 010p10c 10 Pin Rj45 Connector / 1.5 A Rj45 Female Jack 750 Cycles Min Durrability 110p10c 10 Pin Rj45 Connector / 1.5 A Rj45 Female Jack 750 Cycles Min Durrability 210p10c 10 Pin Rj45 Connector / 1.5 A Rj45 Female Jack 750 Cycles Min Durrability 310p10c 10 Pin Rj45 Connector / 1.5 A Rj45 Female Jack 750 Cycles Min Durrability 4
