90 Degree Rj45 Plug 10 100 / Tab Down Rj45 Network Jack TM56S811EXX43
90 Degree Rj45 Plug 10 100 / Tab Down Rj45 Network Jack TM56S811EXX43 90 Degree Rj45 Plug 10 100 / Tab Down Rj45 Network Jack TM56S811EXX43 90 Degree Rj45 Plug 10 100 / Tab Down Rj45 Network Jack TM56S811EXX43
Contact Now

90 Degree Rj45 Plug 10 100 / Tab Down Rj45 Network Jack TM56S811EXX43

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 100pcs/tray Delivery Time : 20 Days
Payment Terms : T/T, Western Union,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TM56S811SXX43

Detail Information
Insulation Resistance: 500 MΩ MIN @ 500V DC Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN
Product Type: RJ45 Modular Connector Jack Type: RJ45
Number Of Positions: 8 Terminals Per Port: 8
Shielded EMI Tabs: No Voltage Rating: 125 V
Current Rating: 1.5 A Contact Resistance: 30mΩ
High Light:

rj45 smt connector

,

surface mount rj45 plug

,

90 Degree Tab Down RJ45 Jack

Product Description

90 degree SMT RJ45 Connector 10/100, Single Port Tab down with Unshield TM56S811SXX43

Materials:


Housing : FR52,UL94V-0 ( RoHS )
Contact Finish: T=0.35 mm GOLD PLATING FU" OVER NICKEL IN CONTACT TIN PLATING OVER NICKEL IN SOLDER AREA.( RoHS )
Shielding Shell: No shield.
All materials mates with modulat plug conforming to FCC part 68. subpart F.


Product Structure:


RJ45 Jack
1 x 1 Port / Single Port / SMT Port
Latch Down
Connector Length: 18.10 mm
Connector Width: 15.00 mm
Connector Height: 11.50 mm
Termimal Solder Pin Length: 2.5 mm
8P8C ( 8 positions 8 contacts )
90°Orientation
Without led, let know the connection status
Without Shield,can be customized as required
We Support Custom service as required



RJ45 Without Transformer (TM56S811SXX43) Attributes:



Model: TM56S811SXX43
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Modular Connector
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 8
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1000pcs
Manner of packing : Tray
Delivery Time: 20 Days
Supply Ability: 5KK/year

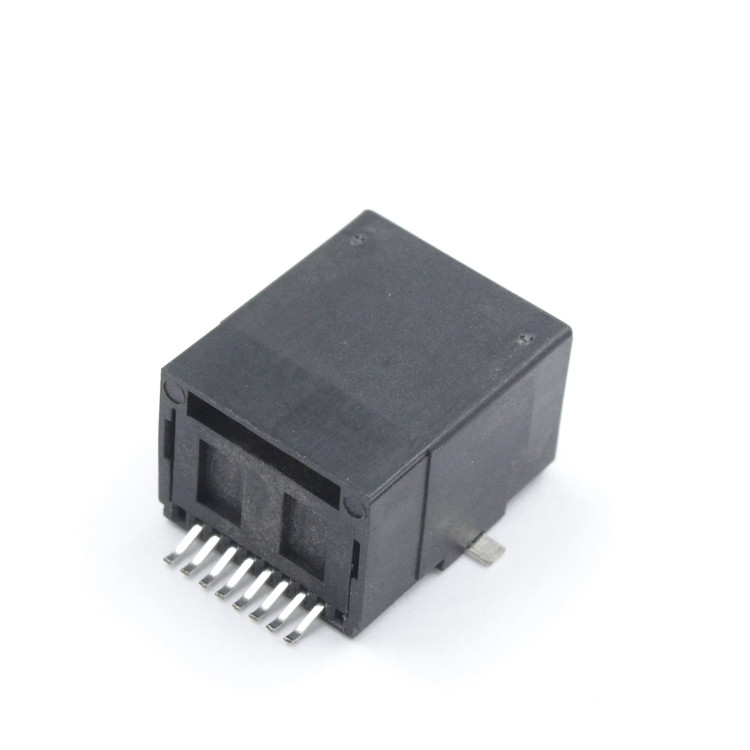

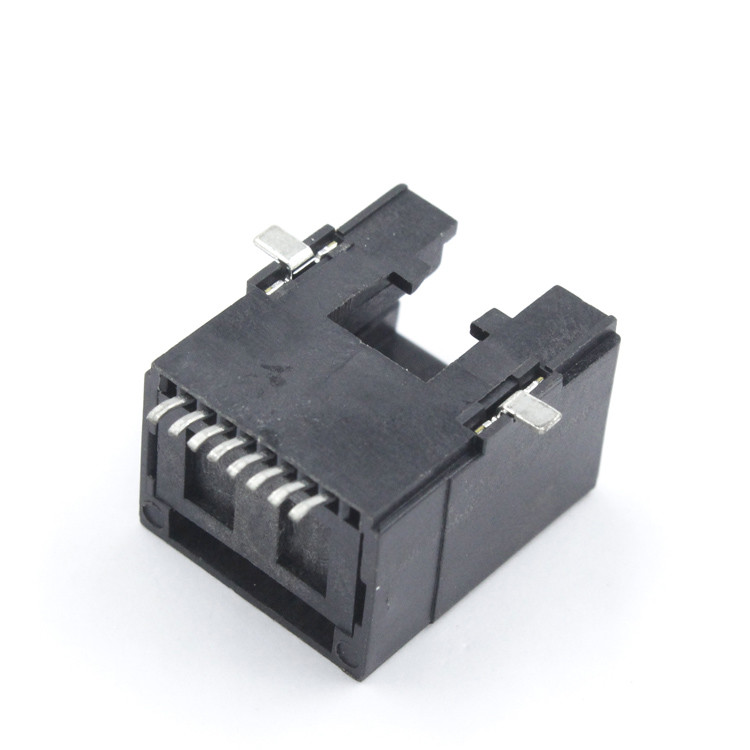

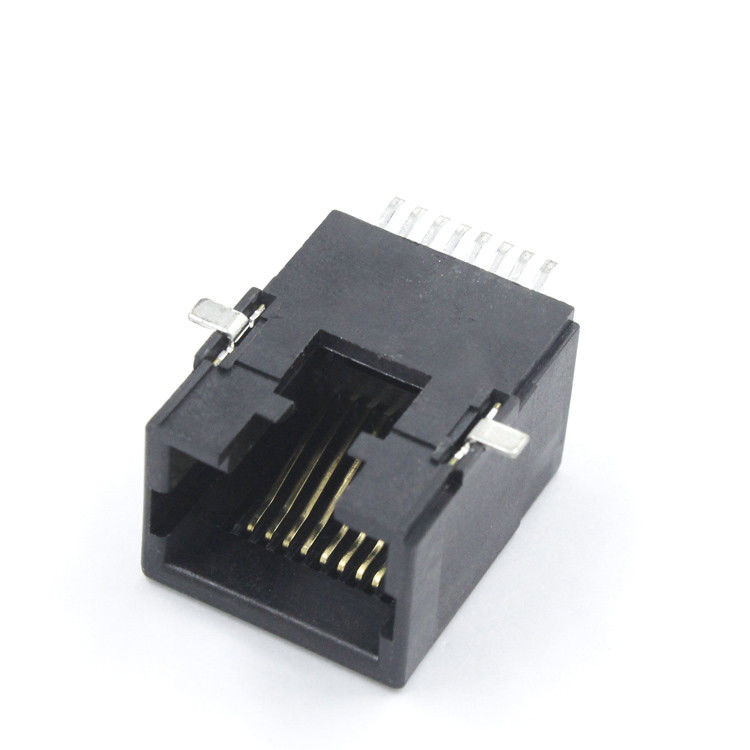

RJ45 Female Connector () Mechnical Drawing:
