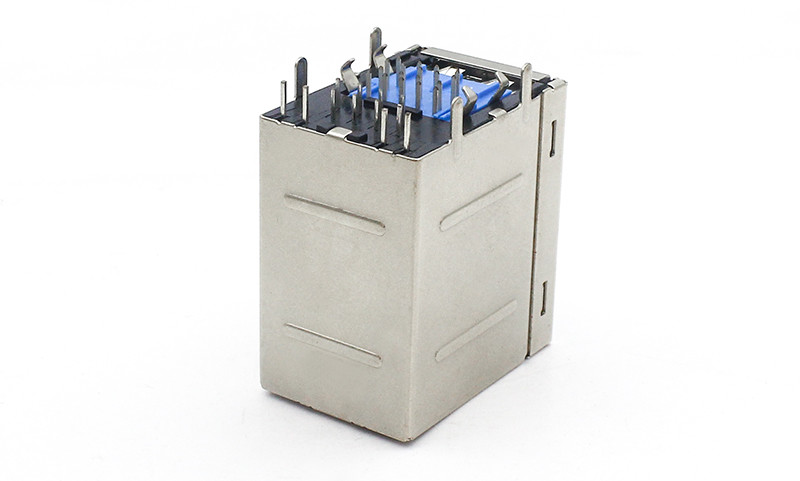

RJ45 Modular Jack Double USB3.0 Port + RJ45 Jack With LEDs Network
RJ45 Modular Jack Double USB3.0 Port + RJ45 Jack With LEDs Network
Contact Now

RJ45 Modular Jack Double USB3.0 Port + RJ45 Jack With LEDs Network

Minimum Order Quantity : Negotiate Price : Supportive
Packaging Details : 50pcs/tray Delivery Time : 20 Days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TMRJUSB3EX111

Detail Information
Jack Type: RJ45 With USB Connector Number Of Positions: 8+9+9
Terminals Per Port: 8+9+9 LED Option: YES,L-YELLOW/R-GREEN
Shielded EMI Tabs: No Voltage Rating: 125 V
Current Rating: 1.5 A Contact Resistance: 30mΩ
Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN Durrability: 750 CYCLES MIN
Minimal Order: 500pcs Package: 50pcs/tray
High Light:

rj45 modular jack

,

rj45 ethernet jack

Product Description

Hot sale Modular Jack Double USB3.0 Port + RJ45 Jack with LEDs Network



Materials:

Housing : PBT,UL94V-0 ( RoHS )

Contact Finish: T=0.3mm GOLD PLATING FU" OVER NICKEL IN CONTACT TIN PLATING OVER NICKEL IN SOLDER AREA.( RoHS )

Shielding Shell: Steel or spcc

All materials mates with modulat plug conforming to FCC part 68. subpart F.



Product Structure:

RJ45 Jack

Latch Up

Connector Length: 27.65 mm

Connector Width: 19.15 mm

Connector Height: 30.75 mm

Termimal Solder Pin Length: 2.9 mm

RJ45 PIN NO.8P8C ( 8 positions 8 contacts )

90°Orientation

With LED, let know the connection status

With Shield,can be customized as required

We Support Custom service as required



RJ45 Without Transformer (TMRJUSB3EX111) Attributes:



Model: TMRJUSB3EX111
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type RJ45 with USB Connector
Jack Type: RJ45 and USB
Number of Positions : 8+9+9
Terminals per Port: 8+9+9
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Package: 50pcs/tray
Delivery Time: 20 Days
Supply Ability: 5KK/year



RJ45 Female Connector (TMRJUSB3EX111) Mechnical Drawing:

RJ45 Modular Jack Double USB3.0 Port + RJ45 Jack With LEDs Network 0RJ45 Modular Jack Double USB3.0 Port + RJ45 Jack With LEDs Network 1RJ45 Modular Jack Double USB3.0 Port + RJ45 Jack With LEDs Network 2RJ45 Modular Jack Double USB3.0 Port + RJ45 Jack With LEDs Network 3RJ45 Modular Jack Double USB3.0 Port + RJ45 Jack With LEDs Network 4
