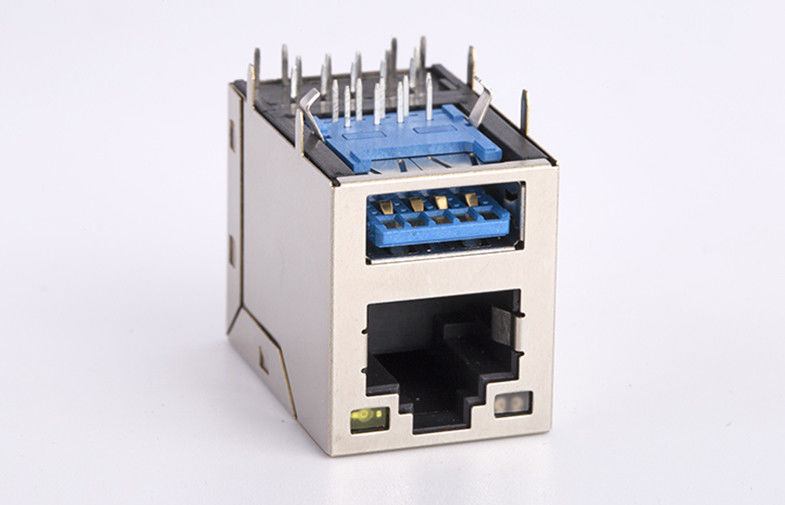

2X1 Tab Up USB RJ45 JACK Single Port With Internal Magnetics Transformer TM611Q31ARX-3.0
2X1 Tab Up USB RJ45 JACK Single Port With Internal Magnetics Transformer TM611Q31ARX-3.0
Contact Now

2X1 Tab Up USB RJ45 JACK Single Port With Internal Magnetics Transformer TM611Q31ARX-3.0

Minimum Order Quantity : 500 piece Price : Supportive
Packaging Details : Tray in Carton Delivery Time : 3 work days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 100kpcs /day
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TM611Q31ARX-3.0)

Detail Information
NUMBER OF PORTS: 2X1 NUMBER OF CONTACTS: 12
LENGTH: 25.78mm HOUSING MATERIAL: PBT UL94V-0
CONTACT MATING AREA PLATING: GOLD 6U'' PLATING CONNECTOR TYPE: BLACK
LED OPTION: LEFT GN/OR,RIGHT YELLOW GROUNDING OPTIONS: Panel Ground And PCB Ground
SHIELD PLATING MATERIAL: NICKEL SHIELD EMI TABS: NO
SHIELD: YES ROHS COMPLIANT: YES
PANEL STOP: YES PCB MOUNT ANGLE: SIDE ENTRY
PACKAGE: DIP CONNECTOR & CONTACT TERMINAATES TO: Printed Circuit Board
LATCH ORIENTATION: LATCH DOWN
High Light:

rj45 modular socket

,

shielded rj45 jack

Product Description



Single port 2X1 Tab Up RJ45 JACK USB with internal magnetics 100/1000Base-Tx RJ45 Connector with Transformer TM611Q31ARX-3.0







RJ45 Without Transformer (TM611Q31ARX-3.0) Attributes:



Model Number TM611Q31ARX-3.0
LENGTH 25.78mm
HOUSING MATERIAL PBT UL94V-0
CONTACT MATING AREA PLATING GOLD FU'' PLATING
CONNECTOR TYPE RJ45
CONNECTOR MATERIAL COLOR BLACK
LED OPTION LEFT GN/OR,RIGHT YELLOW
NUMBER OF PORTS 2X1
NUMBER OF CONTACTS 12
GROUNDING OPTIONS Panel Ground and PCB Ground
SHIELD PLATING MATERIAL NICKEL
SHIELD EMI TABS NO
SHIELD YES
ROHS COMPLIANT YES
PANEL STOP YES
PCB MOUNT ANGLE SIDE ENTRY
PACKAGE DIP
CONNECTOR & CONTACT TERMINAATES TO Printed Circuit Board
LATCH ORIENTATION LATCH DOWN



RJ45 Female Connector (TM611Q31ARX-3.0) Applications:



10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone,internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,

HomePNA,DSL／ADSL and so on.



RJ45 Female Connector (TM611Q31ARX-3.0) Mechnical Drawing:



2X1 Tab Up USB RJ45 JACK Single Port With Internal Magnetics Transformer TM611Q31ARX-3.0 02X1 Tab Up USB RJ45 JACK Single Port With Internal Magnetics Transformer TM611Q31ARX-3.0 12X1 Tab Up USB RJ45 JACK Single Port With Internal Magnetics Transformer TM611Q31ARX-3.0 2
