USB3.0 RJ45 USB Connectors / Rj45 Modular Plug Right Angle Orientation
USB3.0 RJ45 USB Connectors / Rj45 Modular Plug Right Angle Orientation
Contact Now

USB3.0 RJ45 USB Connectors / Rj45 Modular Plug Right Angle Orientation

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 50pcs/tray Delivery Time : 20 Days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TMRJUSB3EX11A

Detail Information
LED Option: YES,L-YELLOW/R-GREEN Shielded EMI Tabs: No
Voltage Rating: 125 V Current Rating: 1.5 A
Contact Resistance: 30mΩ Insulation Resistance: 500 MΩ MIN @ 500V DC
Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN Durrability: 750 CYCLES MIN
Minimal Order: 500pcs Package: 50pcs/tray
High Light:

rj45 modular plug

,

rj45 ethernet jack

Product Description

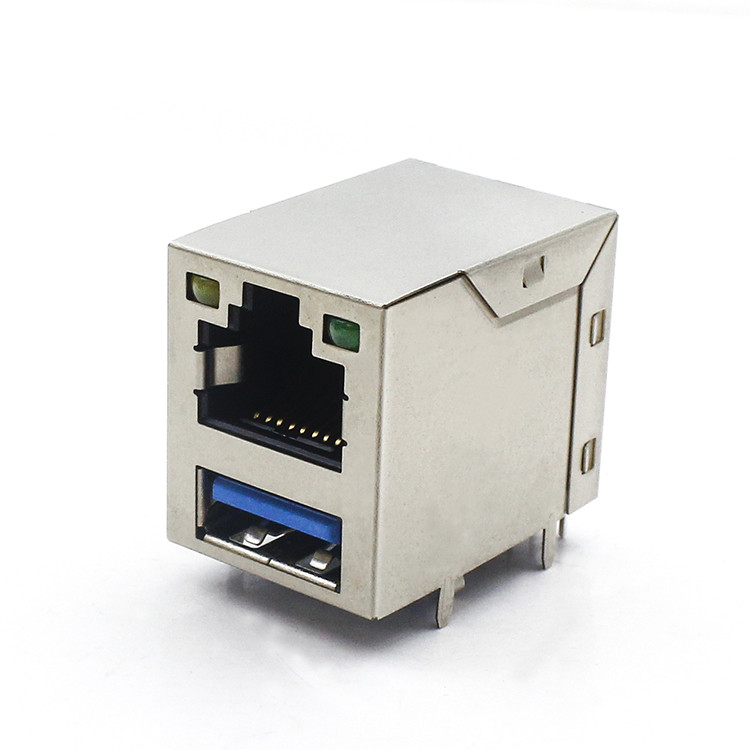

Single port Integrated Rj45 USB 3.0 connector with Shield and Leds TMRJUSB3EX11A





RJ45 Without Transformer (TMRJUSB3EX11A) Attributes:



Model: TMRJUSB3EX11A
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 USB Connector
Jack Type: RJ45 USB
Number of Positions : 8
Terminals per Port: 8
LED Option: YES,L-YELLOW/R-GREEN
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Delivery Time: 20 Days
Supply Ability: 5KK/year



RJ45 Female Connector (TMRJUSB3EX11A) Mechnical Drawing:

USB3.0 RJ45 USB Connectors / Rj45 Modular Plug Right Angle Orientation 0



Materials:



Housing : PBT,UL94V-0 ( RoHS )
Contact Finish: COPPER ALLOY T=0.3mm,GOLD PLATING FU" OVER NICKEL IN CONTACT TIN PLATING OVER NICKEL IN SOLDER AREA.( RoHS )
Shielding Shell: COPPER ALLOY
All materials mates with modulat plug conforming to FCC part 68. subpart F.


Product Structure:


RJ45 Jack
Latch Up
Connector Length: 27.50 mm
Connector Width: 18.7 mm
Connector Height: 22.50 mm
Termimal Solder Pin Length: 2.7 mm
8P8C ( 8 positions 8 contacts )
90°Orientation
With LED L-YELLOW,R-GREEN, let know the connection status
With Shield,can be customized as required
We Support Custom service as required
