Cat6e Right Angle Single Port RJ45 Keystone Jacks Metal with Shield 8p8c TMZT281XEXX7E
Contact Person : David
Phone Number : 15972107349
| Minimum Order Quantity : | 1 piece | Price : | Please contact us to get the latest price |
|---|---|---|---|
| Packaging Details : | Tray in Carton | Delivery Time : | 10 days |
| Payment Terms : | L/C, T/T, Western Union, MoneyGram | Supply Ability : | 100K pcs/day |
| Place of Origin: | Guangdong of China | Brand Name: | TM |
|---|---|---|---|
| Certification: | UL,Rohs,Reach,ISO9001 | Model Number: | TMZJ014058 |
|
Detail Information |
|||
| LED Option: | No | Shielded EMI Tabs: | No |
|---|---|---|---|
| Voltage Rating: | 125 V | Current Rating: | 1.5 A |
| Contact Resistance: | 30mΩ | Insulation Resistance: | 500 MΩ MIN @ 500V DC |
| Dielectric Resistance: | 1000V AC RMS 50Hz. 1MIN | Durrability: | 750 CYCLES MIN |
| Minimal Order: | 1pcs | Manner Of Packing: | Tray In Carton |
| Delivery Time: | 20 Days | Supply Ability: | 5KK/year |
| Highlight: | cat6 female jack,modular jack cat 6 |
||
Product Description

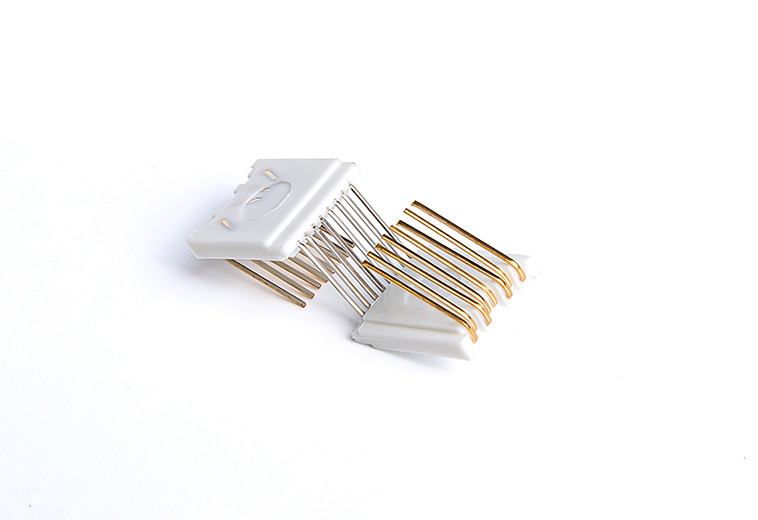

Industrial Cat6 RJ45 Female connector All materials mates with modular plug Length 24.10 mm TMZJ014058
RJ45 Without Transformer (TMZJ014058) Attributes:
| Model: | TMZJ014058 |
| Place of Origin: | Guangdong of China |
| Certification: | UL,Rohs,Reach,ISO9001 |
| Product Type : | RJ45 Modular Connector |
| Jack Type: | RJ45 |
| Number of Positions : | 8 |
| Terminals per Port: | 8 |
| LED Option: | No |
| Shielded EMI Tabs: | No |
| Voltage rating: | 125 V |
| Current rating: | 1.5 A |
| Contact resistance: | 30mΩ |
| Insulation resistance: | 500 MΩ MIN @ 500V DC |
| Dielectric resistance: | 1000V AC RMS 50Hz. 1MIN |
| Durrability: | 750 CYCLES MIN |
| Minimal Order: | 1pcs |
| Manner of packing : | Tray |
| Delivery Time: | 20 Days |
| Supply Ability: | 5KK/year |
RJ45 Female Connector (TMZJ014058) Mechnical Drawing:
