Rj45 Network Splitter Adapter 180 Degree Through RJ45 Female Adapter 8P8C Network Cable Extension Black
Contact Person : David
Phone Number : 15972107349
| Minimum Order Quantity : | 100pcs | Price : | Supportive |
|---|---|---|---|
| Packaging Details : | 50pcs/tray | Delivery Time : | 20 Days |
| Supply Ability : | 500K/year |
| Place of Origin: | Guangdong of China | Brand Name: | TM |
|---|---|---|---|
| Certification: | UL,Rohs,Reach,ISO9001 | Model Number: | TMPMWRJ0001 |
|
Detail Information |
|||
| Product Type : | RJ45 Modular Connector | Jack Type: | RJ45 |
|---|---|---|---|
| LED Option: | No | Shielded EMI Tabs: | No |
| Voltage Rating: | 125 V | Current Rating: | 1.5 A |
| Contact Resistance: | 40mΩ | Durrability: | 750 CYCLES MIN |
| Highlight: | Waterproof Female Ethernet Adapter,Dustproof Female Ethernet Adapter,Industrial Rj45 Adapter Female To Female |
||
Product Description

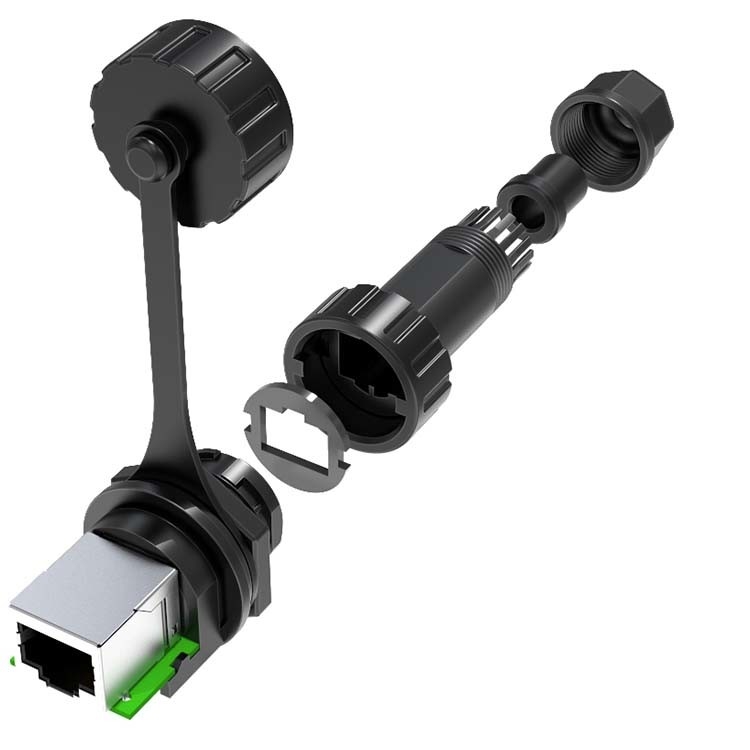

RJ45 Network Adapter Female To Female Waterproof Dustproof Coupler Industrial Grade For Cable Extension
RJ45 Network Adapter Female (TMPMWRJ0001) Attributes:
| Model: | TMPMWRJ0001 |
| Place of Origin: | Guangdong of China |
| Certification: | UL,Rohs,Reach,ISO9001 |
| Product Type : | RJ45 Modular Connector |
| Jack Type: | RJ45 |
| Number of Positions : | 8 |
| Terminals per Port: | 8 |
| LED Option: | No |
| Shielded EMI Tabs: | No |
| Voltage rating: | 125 V |
| Current rating: | 1.5 A |
| Contact resistance: | 40mΩ |
| Insulation resistance: | 500 MΩ MIN @ 500V DC |
| Dielectric resistance: | 1000V AC RMS 50Hz. 1MIN |
| Durrability: | 750 CYCLES MIN |
| Minimal Order: | 1pcs |
| Manner of packing : | 50pcs/tray,500pcs/case |
| Delivery Time: | 20 Days |
| Supply Ability: | 5KK/year |
RJ45 Network Adapter Female (TMPMWRJ0001) Mechnical Drawing:
Materials:
Housing : ABS,UL94V-0 ( RoHS )
Contact Finish: T=.35 mm Phosphor Bronze gold plating(Fu” ~50u”Optional) over nickel in contact.
Shielding Shell: Stainless Steel
All materials mates with modulat plug conforming to FCC part 68. subpart F.
Operating Temperature:-20°C~+75X
Current Rating:1.5A
Voltage Rating:125V AC
Withstand Voltage:1000V AC
Insulation Resistance:1000MQ
Contact Resistance:30mQ
Service life:750 cycle Min
Product Structure:
RJ45 Modular Jack
1 x 1 Port / Single Port / One Port
RJ45 Connector Width: 28.71 mm
RJ45 Connector Height: 43.20 mm
8P8C ( 8 positions 8 contacts )
180°Orientation
Without LED, let know the connection status
With Shield,can be customized as required
We Support Custom service as required
