Cat6 Network Modular Female RJ45 Cable Coupler With Shield

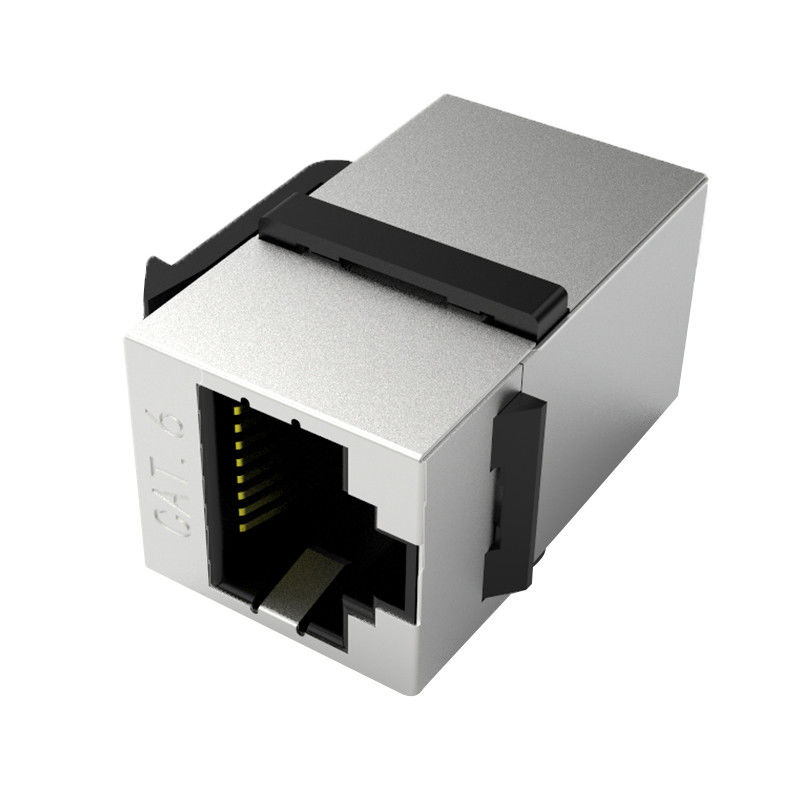

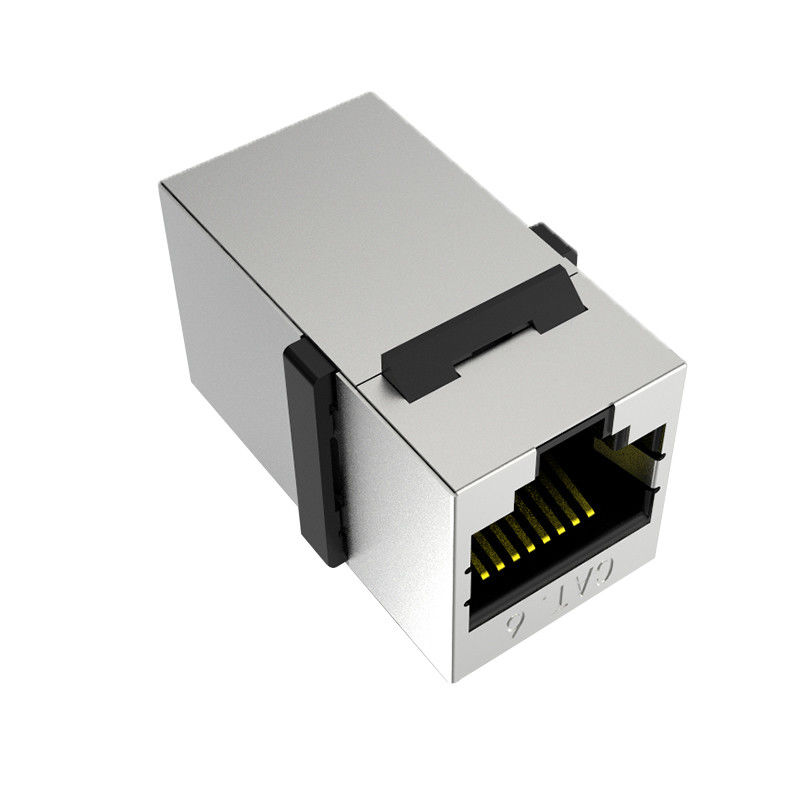

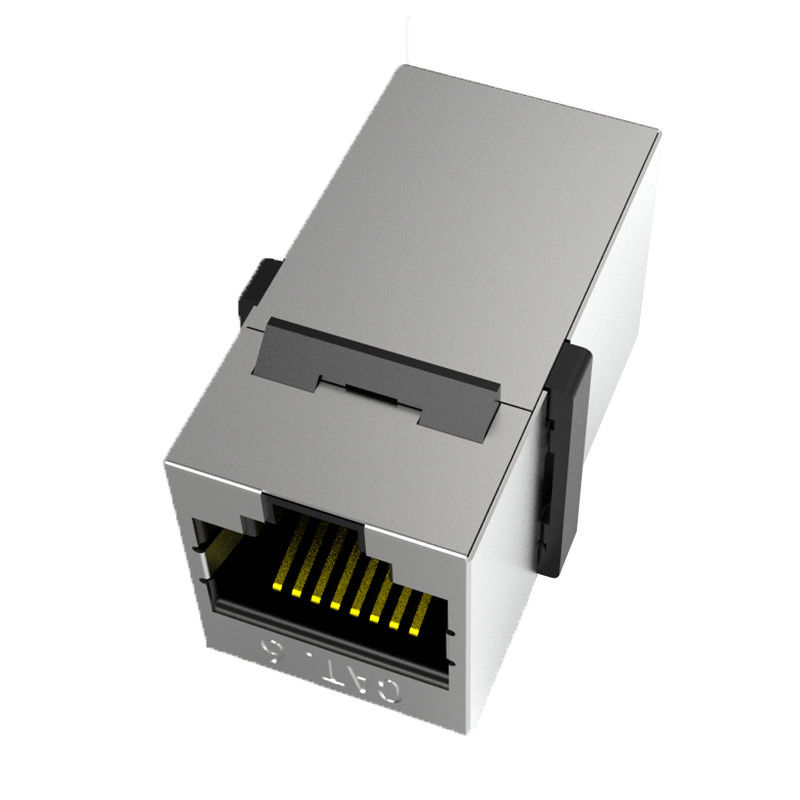

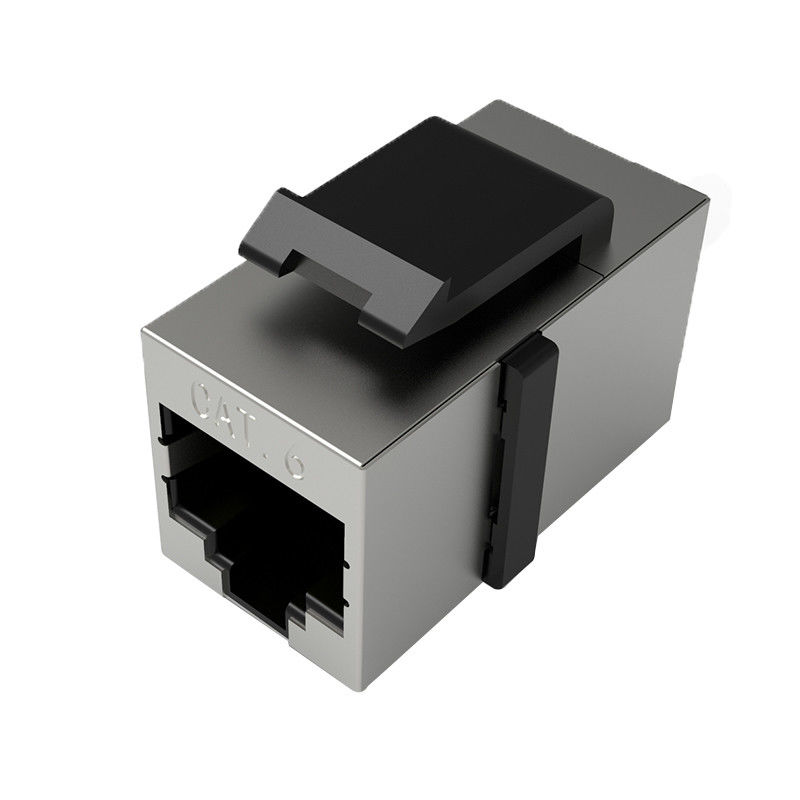

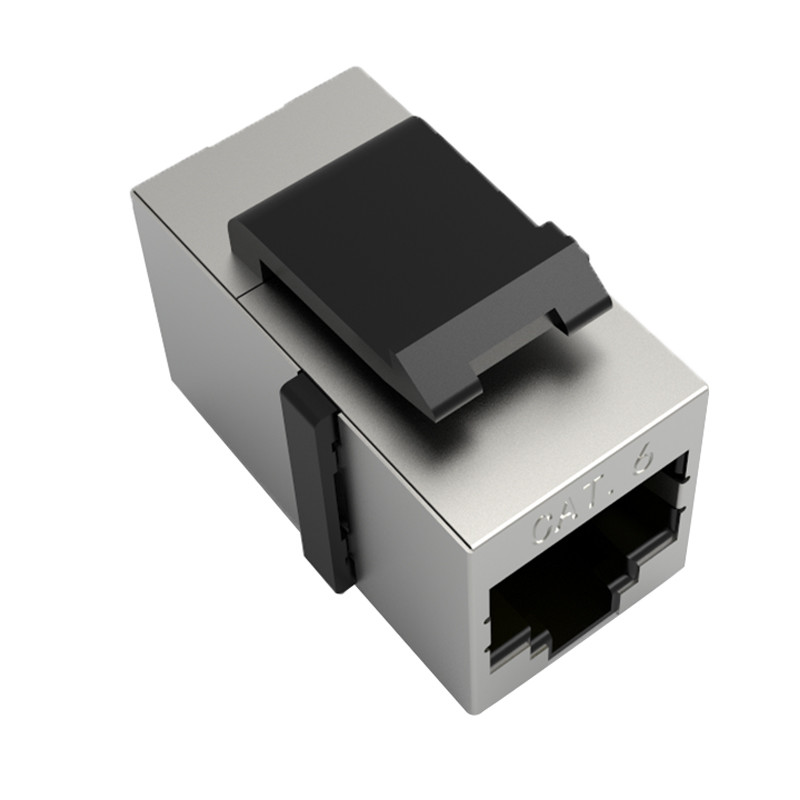

Cat6 Network Modular Female RJ45 Cable Coupler With Shield Cat6 Network Modular Female RJ45 Cable Coupler With Shield Cat6 Network Modular Female RJ45 Cable Coupler With Shield Cat6 Network Modular Female RJ45 Cable Coupler With Shield Cat6 Network Modular Female RJ45 Cable Coupler With Shield
Contact Now

Cat6 Network Modular Female RJ45 Cable Coupler With Shield

Minimum Order Quantity : 100pcs Price : Supportive
Packaging Details : 50pcs/tray Delivery Time : 20 Days
Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TMZT6811EK004207111059

Detail Information
Product Type : RJ45 Modular Keystone Connector Jack Type: RJ45
Number Of Positions: 8 Terminals Per Port: 8
LED Option: No Shielded EMI Tabs: No
Voltage Rating: 125 V Current Rating: 1.5 A
Contact Resistance: 30mΩ Insulation Resistance: 500 MΩ MIN @ 500V DC
Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN Durrability: 750 CYCLES MIN
High Light:

Modular RJ45 Cable Coupler

,

Cat6 Female RJ45 Coupler

,

Reach Female RJ45 Coupler

Product Description

Cat6 Network Modular Female RJ45 Cable Coupler With Shield



Cat6 Network Modular RJ45 Coupler Shield Female For Blank Keystone Type Patch Panel



Fully shielded housing for reduced EMI/RFI interference.Keystone design allows multiple connection options.Straight-through wiring.Gold contacts. Suitable for blank keystone type patch panel and standard data wallplates.



Model: TMZT6811EK004207111059
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Modular Keystone Connector
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 8
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN



Materials:

Housing : ABS,UL94V-0 ( RoHS )
Contact Finish: T=0.30 mm GOLD PLATING 6U" OVER NICKEL IN CONTACT TIN PLATING OVER NICKEL IN SOLDER AREA.( RoHS )
All materials mates with modulat plug conforming to FCC part 68. subpart F.

Shielding Shell: Stainless Steel.


Product Structure:
RJ45 Modular Jack
Connector Length: 27.6 mm
Connector Width: 14.40 mm
Connector Height: 16.00 mm
8P8C ( 8 positions 8 contacts )
180°Orientation
Without led, let know the connection status
With Shield,can be customized as required
We Support Custom service as required



Cat6 Network Modular RJ45 Coupler Shield



Cat6 RJ45 Coupler Network Modular Drawing:

Cat6 Network Modular Female RJ45 Cable Coupler With Shield 1
