Ethernet 10base T Connector For Industrial Magnetic Side Enter Stacked
Contact Person : David
Phone Number : 15972107349
| Minimum Order Quantity : | Negotiable | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | Tray | Delivery Time : | 15 working days |
| Payment Terms : | L/C, T/T, Western Union, MoneyGram | Supply Ability : | 20kkports/month |
| Place of Origin: | China | Brand Name: | TM |
|---|---|---|---|
| Certification: | UL,Rohs,Reach,ISO9001 | Model Number: | TMX21W08DIJ135118 |
|
Detail Information |
|||
| Model Numbe: | TMX21W08DIJ135118 | LENGTH: | 38.3mm |
|---|---|---|---|
| HOUSING MATERIAL: | PBT UL94V-0 | CONTACT MATING AREA PLATING: | GOLD 30U'' PLATING |
| CONNECTOR TYPE: | RJ45 | CONNECTOR MATERIAL COLOR: | BLACK |
| LED OPTION: | LEFT GN/OR,RIGHT OR | NUMBER OF PORTS: | 2X1 |
| NUMBER OF CONTACTS: | 10 | GROUNDING OPTIONS: | Panel Ground And PCB Ground |
| SHIELD PLATING MATERIAL: | NICKEL | SHIELD EMI TABS: | YES |
| SHIELD: | YES | ROHS COMPLIANT: | YES |
| PANEL STOP: | YES | PCB MOUNT ANGLE: | SIDE ENTRY |
| PACKAGE: | DIP | CONNECTOR & CONTACT TERMINAATES TO: | Printed Circuit Board |
| LATCH ORIENTATION: | LATCH DOWN-UP | ||
| Highlight: | 10g rj45 connector,rj45 metal shielded plug |
||
Product Description

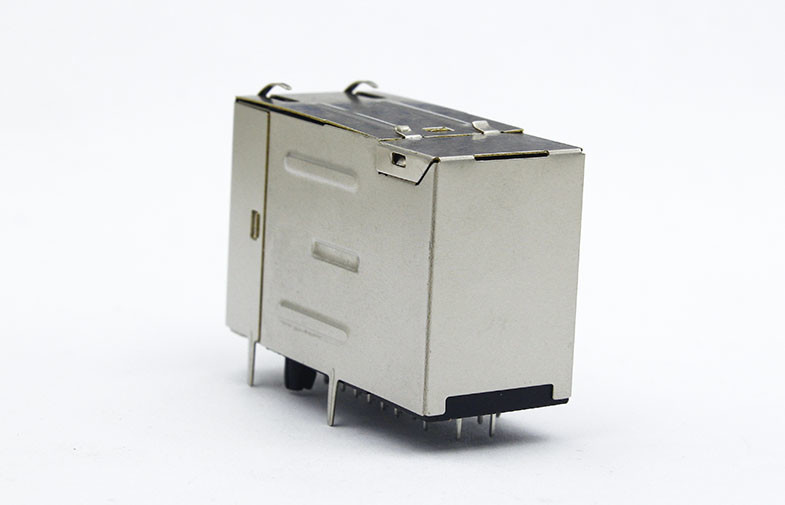

Side Enter Stacked Rj45 Ethernet Jack 10G Base T Transformer EMI For Industrial Magnetic TMX21W08DIJ135118
Description:
RJ45 Female Connector (TMX21W08DIJ135118) Applications:
10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone,internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,
HomePNA,DSL／ADSL and so on.
100/1000Base-Tx RJ45 single port 2X1 with LEDS with Side Entry (Right Angle)
Single port 2X1 Tab Down-Up RJ45 with internal magnetics
Internal magnetics are 100% electrically tested for HI-POT and functionality
Suitable for CAT5&6 fast Ethernet Cable or better UTP
350uHminimum OCL with 8mA bias current
High performance for maximum EMI suppression
Minimum 1500Vrms isolation per IEEE 802.3 requirement
ROHS-6 peak wave solder temperature rating 230℃
Operating temperarure range :-40℃ to +85℃
Storage temperature range :-40℃ to +85℃
RJ45 Without Transformer (TMX21W08DIJ135118) Attributes:
| Model Number | TMX21W08DIJ135118 |
| LENGTH | 38.3mm |
| HOUSING MATERIAL | PBT UL94V-0 |
| CONTACT MATING AREA PLATING | GOLD 30U'' PLATING |
| CONNECTOR TYPE | RJ45 |
| CONNECTOR MATERIAL COLOR | BLACK |
| LED OPTION | LEFT GN/OR,RIGHT OR |
| NUMBER OF PORTS | 2X1 |
| NUMBER OF CONTACTS | 10 |
| GROUNDING OPTIONS | Panel Ground and PCB Ground |
| SHIELD PLATING MATERIAL | NICKEL |
| SHIELD EMI TABS | YES |
| SHIELD | YES |
| ROHS COMPLIANT | YES |
| PANEL STOP | YES |
| PCB MOUNT ANGLE | SIDE ENTRY |
| PACKAGE | DIP |
| CONNECTOR & CONTACT TERMINAATES TO | Printed Circuit Board |
| LATCH ORIENTATION |
LATCH DOWN-UP |
RJ45 Female Connector (TMX21W08DIJ135118) Mechnical :
Drawing:
