Rj45 Network Splitter Adapter 180 Degree Through RJ45 Female Adapter 8P8C Network Cable Extension Black
Contact Person : David
Phone Number : 15972107349
| Minimum Order Quantity : | 500/1000/2000 pcs | Price : | Supportive |
|---|---|---|---|
| Packaging Details : | 1pcs/bag | Delivery Time : | 15 Days |
| Payment Terms : | T/T, Western Union, ,Paypal | Supply Ability : | 500K/year |
| Place of Origin: | Guangdong of China | Brand Name: | TM |
|---|---|---|---|
| Certification: | UL,Rohs,Reach,ISO9001 | Model Number: | RJ45-DB15F-10P8C-003 |
|
Detail Information |
|||
| Number Of Positions: | 10 | Terminals Per Port: | 8 |
|---|---|---|---|
| Durrability: | 750 CYCLES MIN | Shielded EMI Tabs: | NO |
| Package: | 1pcs/bag | Cable Color: | Black |
| Current Rating: | 1.5 A | ||
| Highlight: | female ethernet adapter,ethernet female adapter,RJ45 To DB15 Modular Rj12 Adapter |
||
Product Description

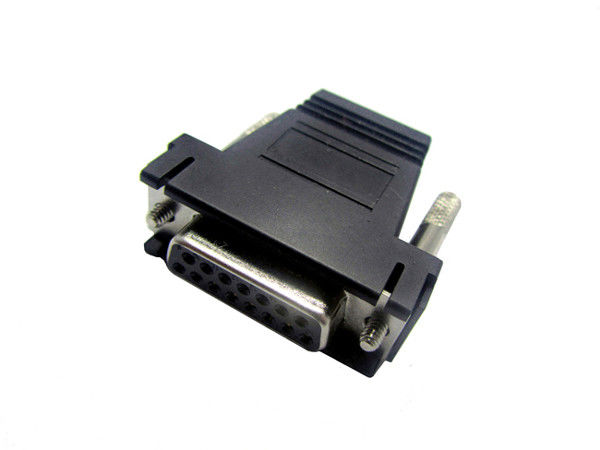

Wholesale colourful RS232 to vga adapter RJ45 to DB15 Modular rj12 adapter RJ45-DB15F-10P8C-003
Materials:
CONNECTOR :
Housing:ABS,BLACK,UL94V-0
Contact material:OD=0.46mm gold plating with over nickel( RoHS )
Gold plating:Fu” Optional
Shielding Shell: ABS,BEIGE,UL94V-0
Wire:1061# 26awg L=75mm
DB15F: PBT Black UL94V-0(RoHS)
All materials mates with modulat plug conforming to FCC part 68. subpart F.
Product Structure:
RJ45 Modular Jack
One to one Port
Connector Length: 39.2 mm
Connector Width: 41.2 mm
Connector Height: 16 mm
10P8C ( 10 positions 8 contacts )
180°Orientation
Without LED, let know the connection status
Without Shield,can be customized as required
We Support Custom service as required
RJ45 Without Transformer (RJ45-DB15F-10P8C-003) Attributes:
| Model: | RJ45-DB15F-10P8C-003 |
| Place of Origin: | Guangdong of China |
| Certification: | UL,Rohs,Reach,ISO9001 |
| Product Type : | RJ45 Modular Connector |
| Jack Type: | RJ45 |
| Number of Positions : | 10 |
| Terminals per Port: | 8 |
| LED Option: | No |
| Shielded EMI Tabs: | No |
| Voltage rating: | 125 V |
| Current rating: | 1.5 A |
| Contact resistance: | 30mΩ |
| Insulation resistance: | 500 MΩ MIN @ 500V DC |
| Dielectric resistance: | 1000V AC RMS 50Hz. 1MIN |
| Durrability: | 750 CYCLES MIN |
| Minimal Order: | 1pcs |
| Package: | 1pcs/bag |
| Delivery Time: | 20 Days |
| Supply Ability: | 500K/year |
RJ45 Female Connector ( RJ45-DB15F-10P8C-003) Mechnical Drawing:
