Female To Female RJ11 Inline Coupler 6P6C Telephone Adapter Coupler

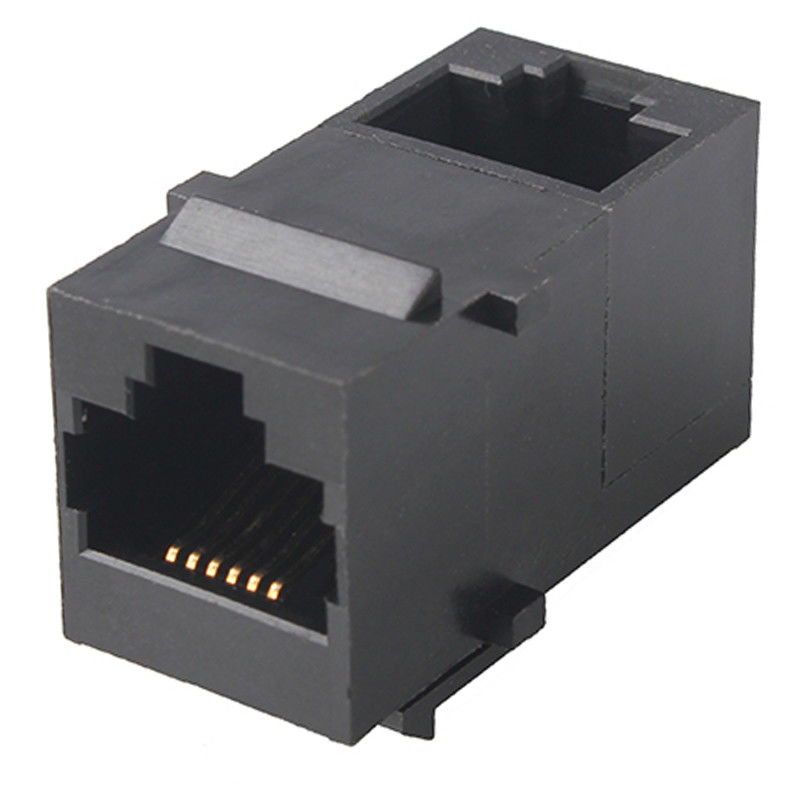

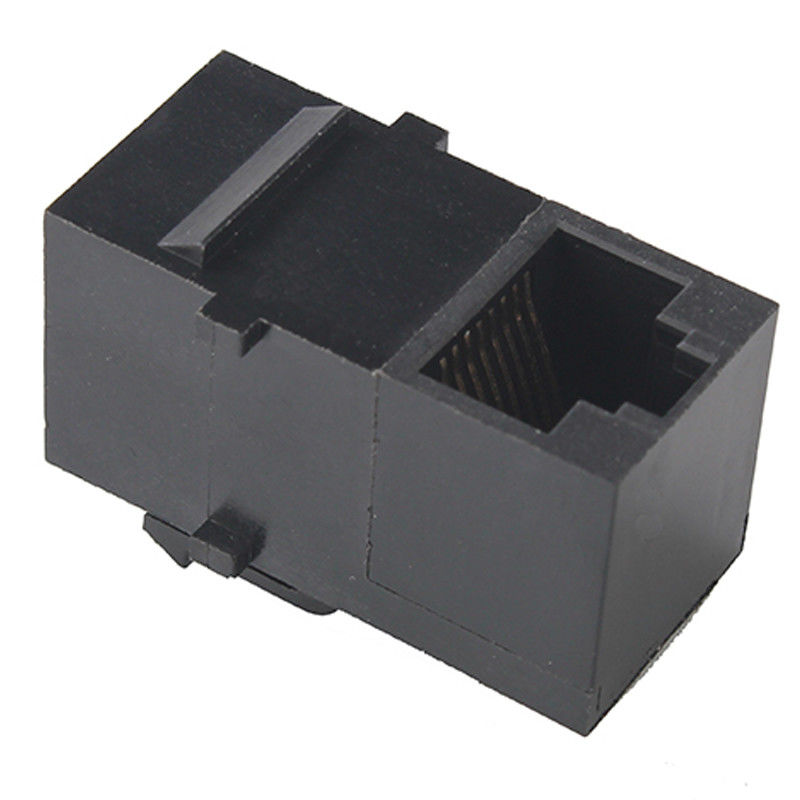

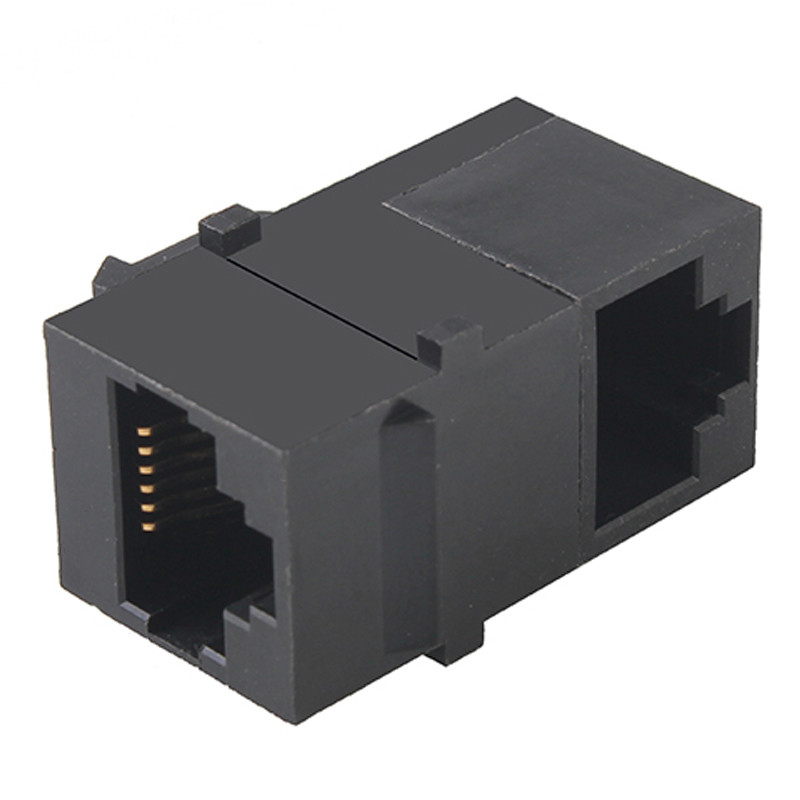

Female To Female RJ11 Inline Coupler 6P6C Telephone Adapter Coupler Female To Female RJ11 Inline Coupler 6P6C Telephone Adapter Coupler Female To Female RJ11 Inline Coupler 6P6C Telephone Adapter Coupler
Contact Now

Female To Female RJ11 Inline Coupler 6P6C Telephone Adapter Coupler

Minimum Order Quantity : 500/1000/2000 pcs Price : Supportive
Packaging Details : 50pcs/tray,500pcs/case 20 Days Delivery Time : 20 Days
Payment Terms : T/T, Western Union,Paypal Supply Ability : 500K/year
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TMZT8511SK001107A41013

Detail Information
Product Type: RJ11 Modular Connector Jack Type: RJ11
Number Of Positions: 6 Terminals Per Port: 6
LED Option: No Shielded EMI Tabs: No
Voltage Rating: 125 V Current Rating: 1.5 A
Contact Resistance: 30mΩ Insulation Resistance: 500 MΩ MIN @ 500V DC
Dielectric Resistance: 1000V AC RMS 50Hz. 1MIN
High Light:

Female To Female RJ11 Inline Coupler

,

125V RJ11 Inline Coupler

,

Rj11 Female Jack

Product Description

Female To Female RJ11 Inline Coupler 6P6C Telephone Adapter Coupler



90° Angle female to female RJ11 Coupler 6P6C telephone adapter/Coupler​ TMZT8511SK001107A41013



Female to Female RJ11 Coupler (TMZT8511SK001107A41013) Attributes:

Model: TMZT8511SK001107A41013
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ11 Modular Connector
Jack Type: RJ11
Number of Positions : 6
Terminals per Port: 6
LED Option: No
Shielded EMI Tabs: No
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Manner of packing : 50pcs/tray,500pcs/case
Delivery Time: 20 Days
Supply Ability: 5KK/year



Female to Female RJ11 Coupler (TMZT8511SK001107A41013) Mechnical Drawing:

Female To Female RJ11 Inline Coupler 6P6C Telephone Adapter Coupler 0

Female to Female RJ11 Coupler Materials:

Housing : PBT,UL94V-0 ( RoHS )

Contact Finish: OD=0.46mm GOLD PLATING FU" OVER NICKEL.( RoHS )

Shielding Shell: No shield.

All materials mates with modulat plug conforming to FCC part 68. subpart F.



Female to Female RJ11 Coupler Product Structure:

RJ11 Modular Jack

Connector Length: 30.3 mm

Connector Width: 14.45 mm

Connector Height: 16.05 mm

Termimal Solder Pin Length: 0 mm

6P6C ( 6 positions 6 contacts )

90°Orientation

Without led, let know the connection status

Without Shield,can be customized as required

We Support Custom service as required
