1X1 10/100Base-Tx RJ45 Single Port / RJ45 Ethernet Jack Without LEDs TM111B03HX1
Contact Person : David
Phone Number : 15972107349
| Minimum Order Quantity : | 500/1000/2000 pcs | Price : | Supportive |
|---|---|---|---|
| Packaging Details : | 30pcs/tray | Delivery Time : | 15 Days |
| Payment Terms : | T/T, Western Union, ,Paypal | Supply Ability : | 500K/year |
| Place of Origin: | Guangdong of China | Brand Name: | TM |
|---|---|---|---|
| Certification: | UL,Rohs,Reach,ISO9001 | Model Number: | TM5JA816T2111 |
|
Detail Information |
|||
| Product Type : | RJ45 Modular Connector | Jack Type: | RJ45 |
|---|---|---|---|
| Number Of Positions: | 8 | Terminals Per Port: | 8 |
| LED Option: | LEFT YE,RIGHT GN | Shielded EMI Tabs: | Yes |
| Voltage Rating: | 125 V | Current Rating: | 1.5 A |
| Contact Resistance: | 30mΩ | Insulation Resistance: | 500 MΩ MIN @ 500V DC |
| Dielectric Resistance: | 1000V AC RMS 50Hz. 1MIN | Durrability: | 750 CYCLES MIN |
| Minimal Order: | 500pcs | Package: | 30pcs/tray |
| Highlight: | rj45 pcb mount jack,rj45 plug pcb mount,1x6 Port RJ45 PCB Connector |
||
Product Description

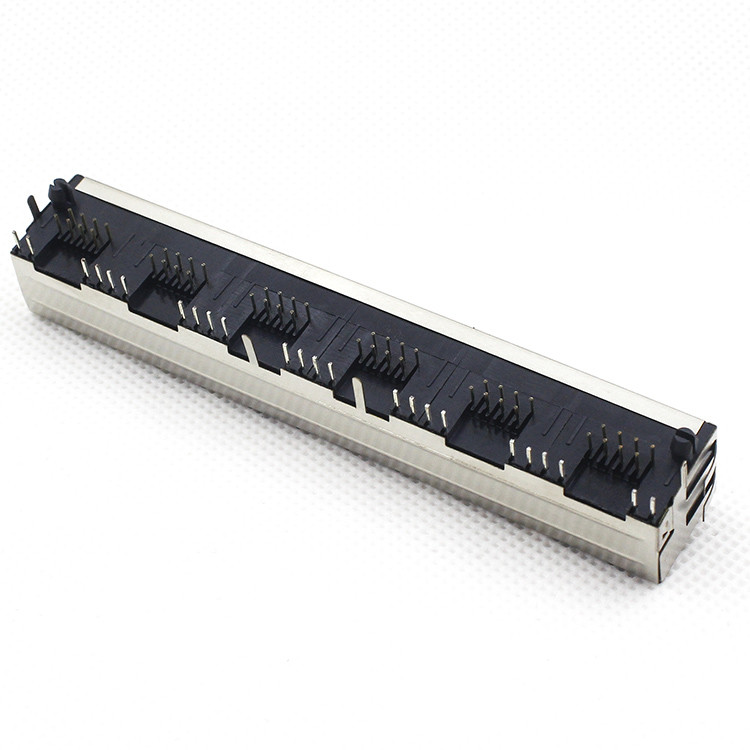

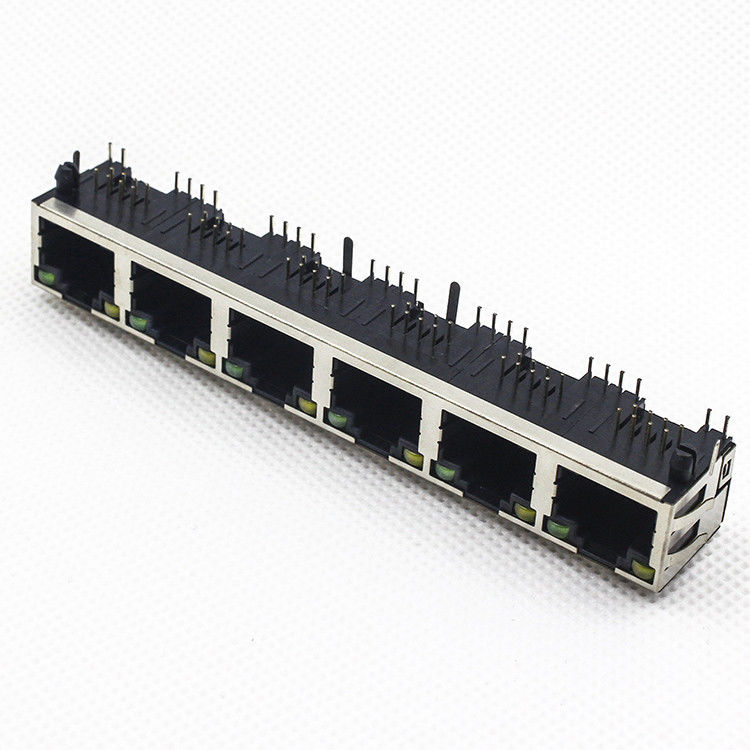

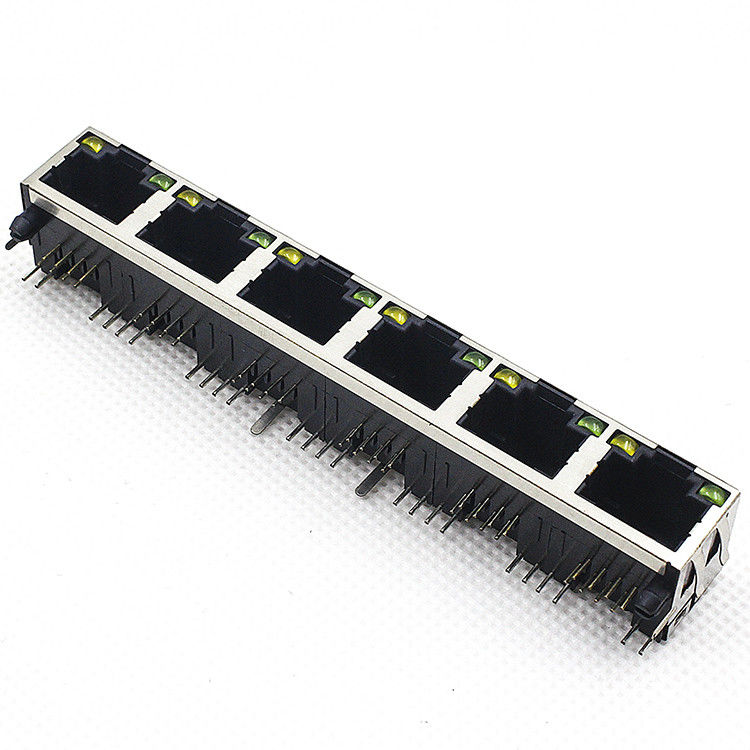

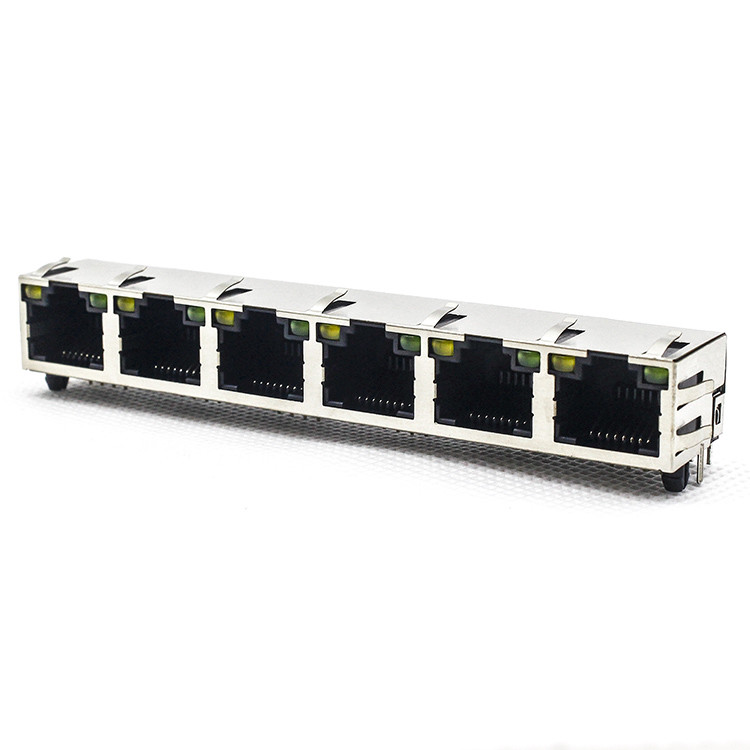

1x6 Port 8 pins 8 Contacts rj45 connector pcb with shiled and Leds TM5JA816T2111
Materials:
Housing : PBT,UL94V-0 ( RoHS )
Contact Finish: OD=0.46mm Phosphor Bronze,CONTACT GOLD PLATING Fu” OVER NICKEL( RoHS )
Shielding Shell: 0.2 mm thickness Copper alloy with Nickel Plating over all
All materials mates with modulat plug conforming to FCC part 68. subpart F.
Product Structure:
RJ45 Jack
1 x 6 Port / Single Port / Six Port
Latch Up
Connector Length: 15.75 mm
Connector Width: 95.25 mm
Connector Height: 13.10 mm
Termimal Solder Pin Length: 2.75 mm
8P8C ( 8 positions 8 contacts )
90°Orientation
With LED, let know the connection status
With Shield,can be customized as required
We Support Custom service as required
RJ45 Without Transformer (TM5JA816T2111) Attributes:
| Model: | TM5JA816T2111 |
| Place of Origin: | Guangdong of China |
| Certification: | UL,Rohs,Reach,ISO9001 |
| Product Type : | RJ45 Modular Connector |
| Jack Type: | RJ45 |
| Number of Positions : | 8 |
| Terminals per Port: | 8 |
| LED Option: | LEFT YE,RIGHT GN |
| Shielded EMI Tabs: | Yes |
| Voltage rating: | 125 V |
| Current rating: | 1.5 A |
| Contact resistance: | 30mΩ |
| Insulation resistance: | 500 MΩ MIN @ 500V DC |
| Dielectric resistance: | 1000V AC RMS 50Hz. 1MIN |
| Durrability: | 750 CYCLES MIN |
| Minimal Order: | 1pcs |
| Package: | 30pcs/tray |
| Delivery Time: | 20 Days |
| Supply Ability: | 5KK/year |
RJ45 Female Connector (TM5JA816T2111) Mechnical Drawing:
