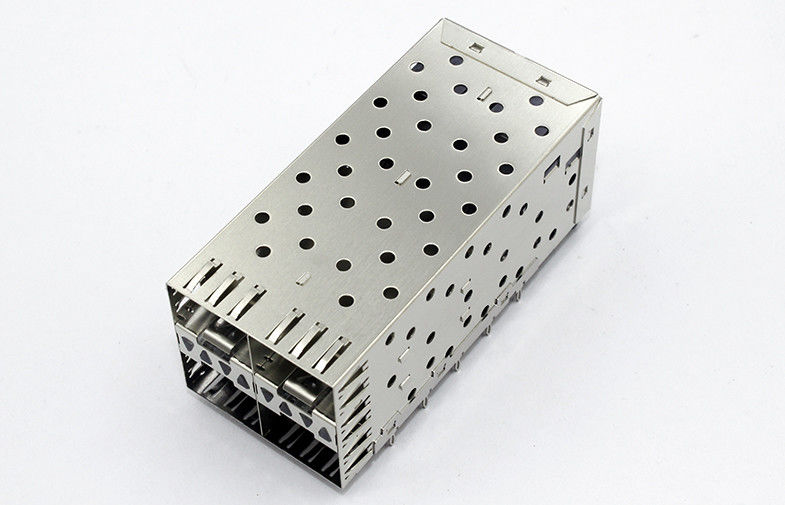

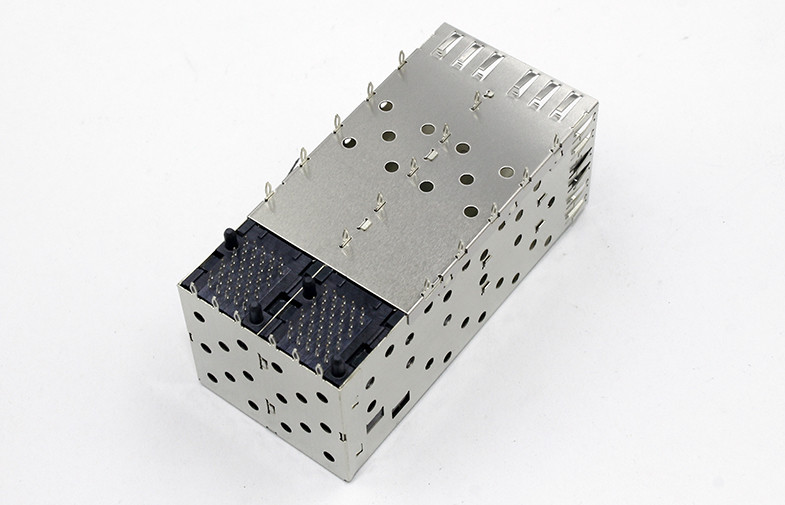

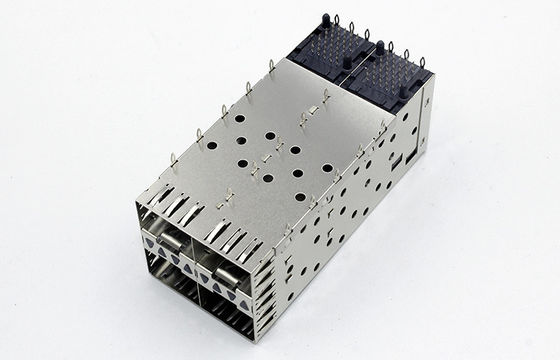

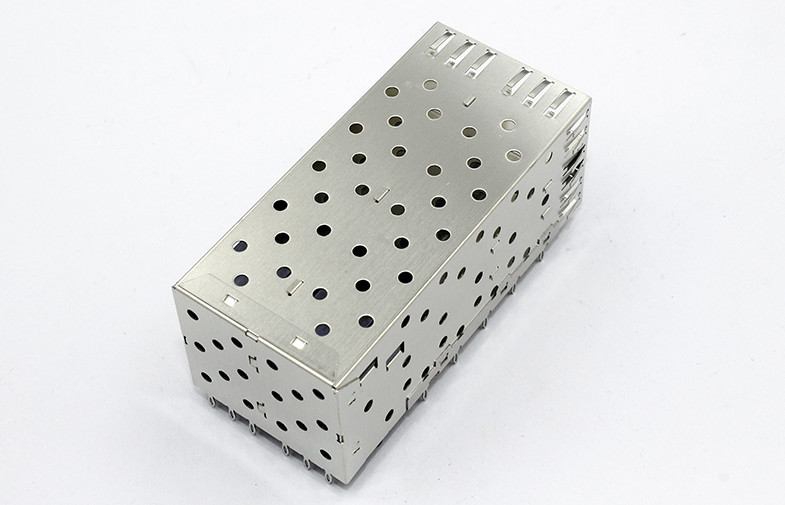

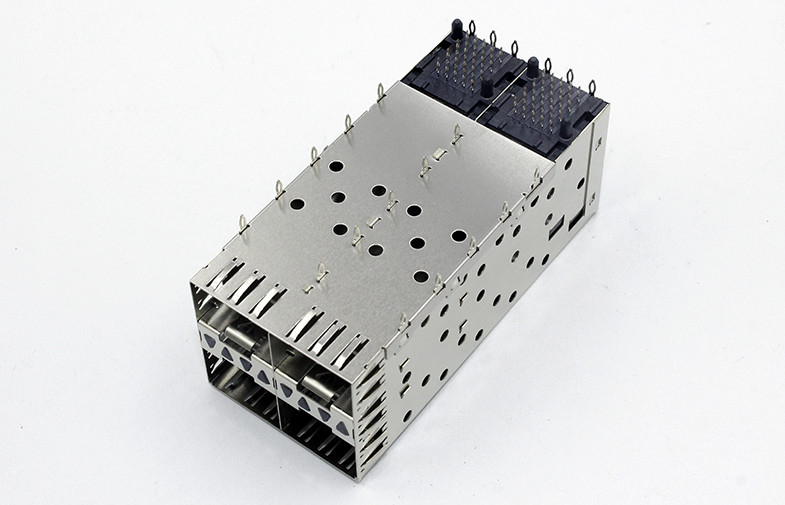

2x8 Integrated SFP Cage Connector With Inner Outer Light Pipe Press Fit Mounting
Contact Person : David
Phone Number : 15972107349
| Minimum Order Quantity : | 500 piece | Price : | Supportive |
|---|---|---|---|
| Packaging Details : | Tray in Carton | Delivery Time : | 3 work days |
| Payment Terms : | T/T, Western Union, ,Paypal | Supply Ability : | 100kpcs /day |
| Place of Origin: | Guangdong of China | Brand Name: | TM |
|---|---|---|---|
| Certification: | UL,Rohs,Reach,ISO9001 | Model Number: | TMSFPX22EXXX3 |
|
Detail Information |
|||
| Product Type : | SFP Cage Connector | Shielded EMI Tabs: | YES |
|---|---|---|---|
| Operation Voltage: | 3.3 V | Operation Current: | 0.5 A |
| Differential Impedance: | 100Ω+/-10Ω | DWV: | 300V AC |
| Insulation Resistance: | 1000MΩ MIN | Contact Resistance: | 35 MILLIOHM MAX |
| Durrability: | 250 MATING CYCLES MIN | Mounting: | Press-fit Pins |
| Operating Temperature: | -40℃ TO +85℃ | Storage Temperature: | -55℃ TO +105℃ |
| Process Characteristics: | 260℃ FOR 10 SECONDS | Tray Packaging: | Cage And Connector Assembly |
| Bulk Packaging: | Dust Cover | Delivery Time: | 20 Days |
| Supply Ability: | 5KK/year | ||
| Highlight: | sfp module connector,sfp port connector |
||
Product Description
2x2 sfp cage connector with Inner Outer Light pipe Press Fit Mounting TMSFPX22EXXX3
SFP Cage Connector (TMSFPX22EXXX3)Structure
| Construction: | One-piece stamped and formed metal cage |
| Light pipe: | With inner outer light pipe |
| Heat Sink: | Without, support custom as required |
| EMI Spring: | With |
| Mounting Type: | Press Fit |
| Integrated Connector: | With |
| Cage Length: | 63.25mm |
| Cage Width: | 28.5mm |
| Cage Height: | 25.40mm |
| Press fit Pin length: | 2.7mm |
| Pore Number: | 4 port in stacked structer |
SFP Cage Connector(TMSFPX22EXXX3) Attributes
| Model: | TMSFPX22EXXX3 |
| Place of Origin: | Guangdong of China |
| Certification: | UL,Rohs,Reach,ISO9001 |
| Product Type : | SFP Cage Connector |
| Shielded EMI Tabs: | YES |
| Operation voltage: | 3.3 V |
| Operation current: | 0.5 A |
| Differential impedance: | 100Ω+/-10Ω |
| DWV: | 300V AC |
| Insulation resistance: | 1000MΩ MIN |
| Contact resistance: | 35 MILLIOHM MAX |
| Durrability: | 250 MATING CYCLES MIN |
| Mounting: | Press-fit pins |
| Operating temperature: | -40℃ TO +85℃ |
| Storage temperature: | -55℃ TO +105℃ |
| Process characteristics: | 260℃ FOR 10 SECONDS |
| Tray packaging: | Cage and connector assembly |
| Bulk packaging: | Dust cover |
| Delivery Time: | 20 Days |
| Supply Ability: | 5KK/year |
SFP Cage Connector(TMSFPX22EXXX3)Applications:
Networking equipment
Router/Switch
Data/Communications
High-end servers
Networking
Fibre Channel and Gigabit Ethernet
Servers
Storage
Telecommunications
Switches
Telecommunications hardware
