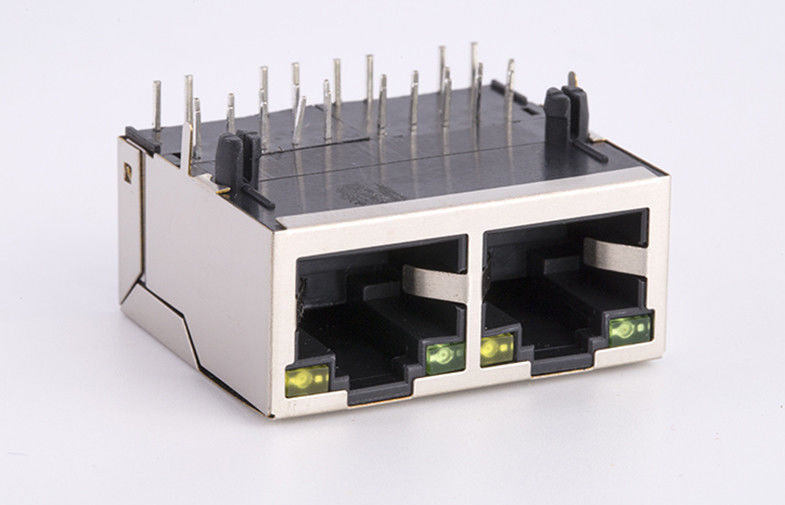

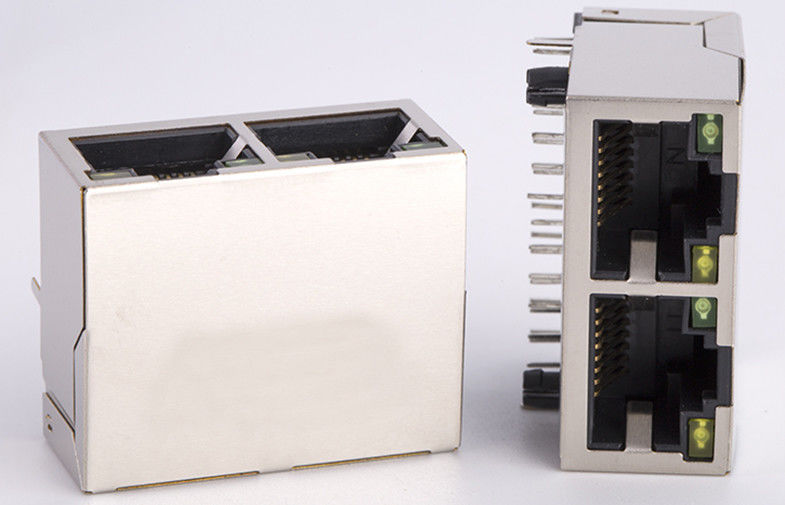

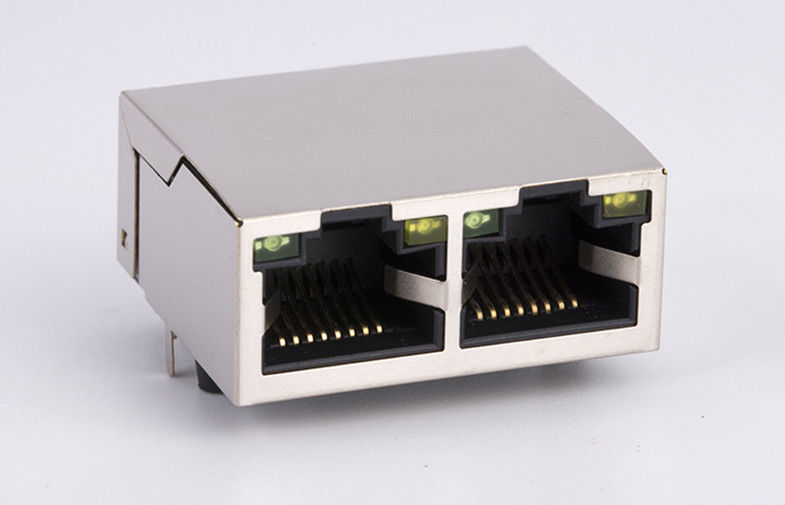

Power Over Ethernet Poe Rj45 Connector With Transformer Single Port 1X2 Tab Up
Power Over Ethernet Poe Rj45 Connector With Transformer Single Port 1X2 Tab Up Power Over Ethernet Poe Rj45 Connector With Transformer Single Port 1X2 Tab Up Power Over Ethernet Poe Rj45 Connector With Transformer Single Port 1X2 Tab Up
Contact Now

Power Over Ethernet Poe Rj45 Connector With Transformer Single Port 1X2 Tab Up

Minimum Order Quantity : 500 piece Price : Supportive
Packaging Details : Tray in Carton Delivery Time : 3 work days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 100kpcs /day
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TM312QB3ABA213007

Detail Information
LENGTH: 25.3mm HOUSING MATERIAL: PBT UL94V-0
CONTACT MATING AREA PLATING: GOLD 6U'' PLATING CONNECTOR TYPE: BLACK
LED OPTION: LEFT GREEN,RIGHT YELLOW NUMBER OF PORTS: 1X2
NUMBER OF CONTACTS: 8 GROUNDING OPTIONS: Panel Ground And PCB Ground
SHIELD PLATING MATERIAL: NICKEL SHIELD EMI TABS: NO
SHIELD: YES ROHS COMPLIANT: YES
PANEL STOP: YES PCB MOUNT ANGLE: SIDE ENTRY
PACKAGE: DIP CONNECTOR & CONTACT TERMINAATES TO: Printed Circuit Board
LATCH ORIENTATION: LATCH DOWN
High Light:

female ethernet jack

,

cat5 rj45 jack

,

1X2 POE RJ45 Connector With Transformer

Product Description



Single port 1X2 Tab-Up Power Over Ethernet (PoE+) RJ45 Connector with Transformer TM312QB3ABA213007



RJ45 Connector with Transformer (TM312QB3ABA213007) Description:


100/1000Base-Tx RJ45 single port 1X2 with LEDS with Side Entry (Right Angle)
Single port 1X2 Tab-Up RJ45 with internal magnetics
Internal magnetics are 100% electrically tested for HI-POT and functionality
Suitable for CAT5&6 fast Ethernet Cable or better UTP
350uHminimum OCL with 8mA bias current
High performance for maximum EMI suppression
Minimum 1500Vrms isolation per IEEE 802.3 requirement
ROHS-6 peak wave solder temperature rating 230℃
Operating temperarure range :-40℃ to +85℃
Storage temperature range :-40℃ to +85℃


RJ45 Without Transformer (TM312QB3ABA213007) Attributes:



Model Number TM312QB3ABA213007
LENGTH 25.3mm
HOUSING MATERIAL PBT UL94V-0
CONTACT MATING AREA PLATING GOLD 6U'' PLATING
CONNECTOR TYPE RJ45
CONNECTOR MATERIAL COLOR BLACK
LED OPTION LEFT GREEN,RIGHT YELLOW
NUMBER OF PORTS 1X2
NUMBER OF CONTACTS 8
GROUNDING OPTIONS Panel Ground and PCB Ground
SHIELD PLATING MATERIAL NICKEL
SHIELD EMI TABS NO
SHIELD YES
ROHS COMPLIANT YES
PANEL STOP YES
PCB MOUNT ANGLE SIDE ENTRY
PACKAGE DIP
CONNECTOR & CONTACT TERMINAATES TO Printed Circuit Board
LATCH ORIENTATION LATCH DOWN


RJ45 Female Connector (TM312QB3ABA213007) Applications:


10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone,internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,
HomePNA,DSL／ADSL and so on.


RJ45 Female Connector (TM312QB3ABA213007) Mechnical Drawing:

Power Over Ethernet Poe Rj45 Connector With Transformer Single Port 1X2 Tab Up 0Power Over Ethernet Poe Rj45 Connector With Transformer Single Port 1X2 Tab Up 1Power Over Ethernet Poe Rj45 Connector With Transformer Single Port 1X2 Tab Up 2
