Rj45 Network Splitter Adapter 180 Degree Through RJ45 Female Adapter 8P8C Network Cable Extension Black
Contact Person : David
Phone Number : 15972107349
| Minimum Order Quantity : | 500/1000/2000 pcs | Price : | Supportive |
|---|---|---|---|
| Packaging Details : | 100pcs/bag | Delivery Time : | 20 Days |
| Payment Terms : | T/T, Western Union,Paypal | Supply Ability : | 500K/year |
| Place of Origin: | Guangdong of China | Brand Name: | tmulink |
|---|---|---|---|
| Certification: | UL,Rohs,Reach,ISO9001 | Model Number: | TMZT8811SX004211111000 |
|
Detail Information |
|||
| Number Of Positions: | 8 | Terminals Per Port: | 8 |
|---|---|---|---|
| LED Option: | No | Shielded EMI Tabs: | No |
| Voltage Rating: | 125 V | Current Rating: | 1.5 A |
| Contact Resistance: | 30mΩ | Insulation Resistance: | 500 MΩ MIN @ 500V DC |
| Dielectric Resistance: | 1000V AC RMS 50Hz. 1MIN | ||
| Highlight: | Female To Female RJ45 Cable Coupler,125V Female Ethernet Adapter,90 Degree RJ45 Cable Coupler |
||
Product Description

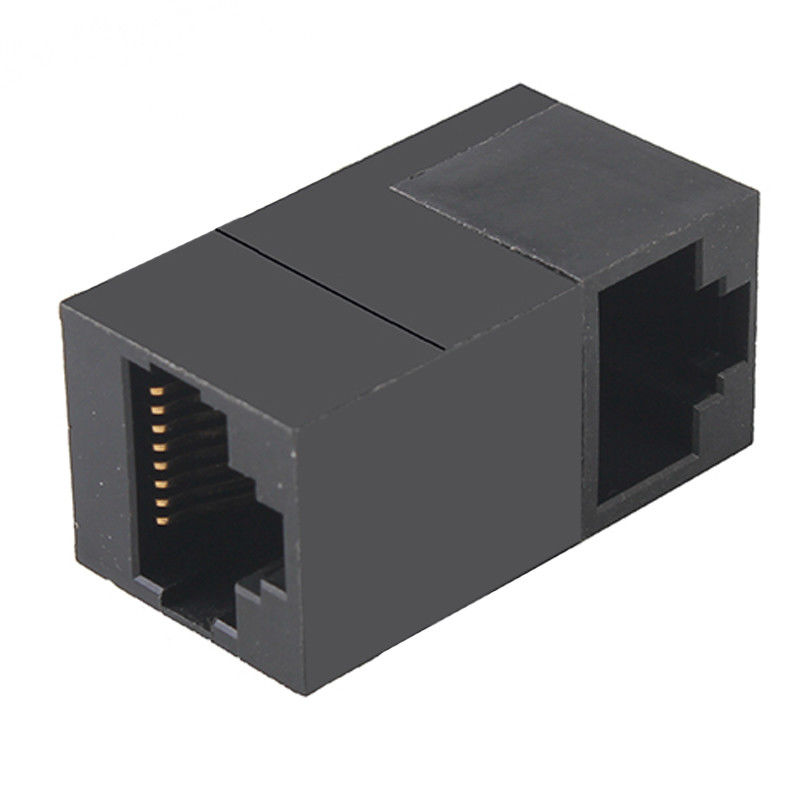

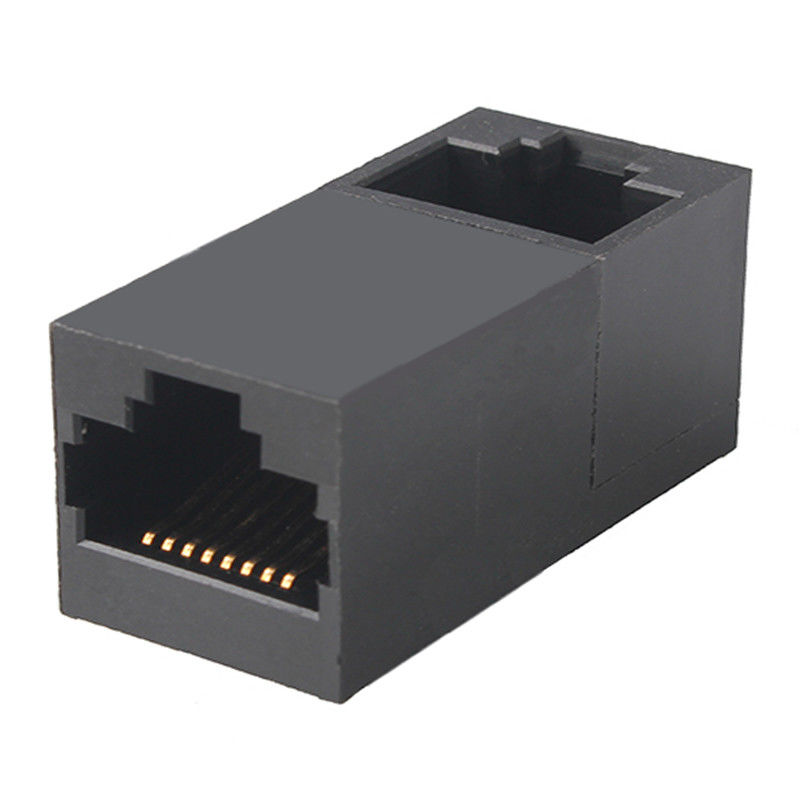

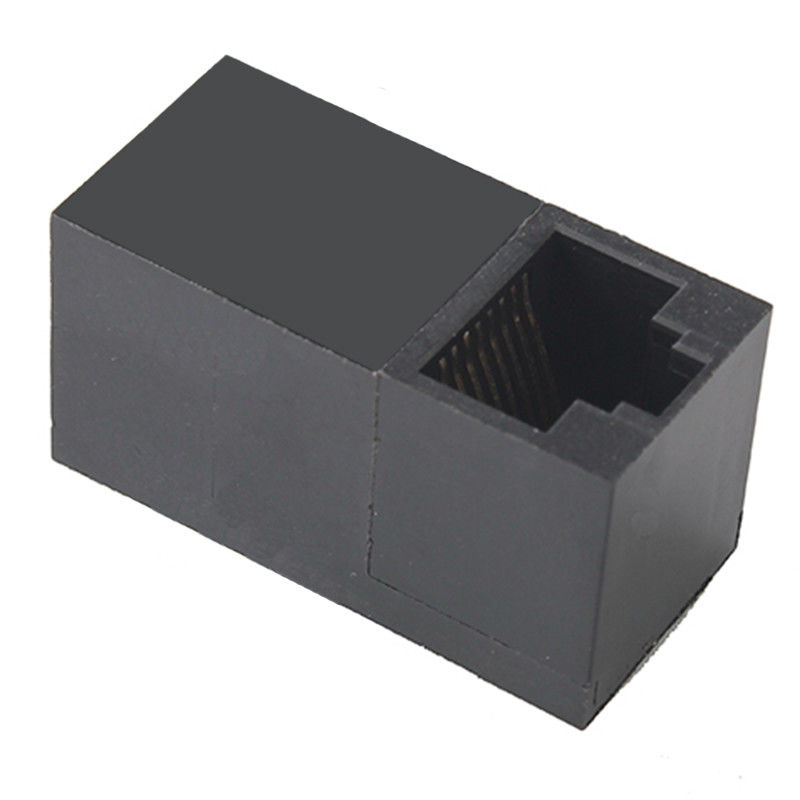

90 degree RJ45 Female to Female straight extension adapter
RJ45 Female to Female adapter (TMZT8811SX004211111000) Materials:
Housing:PBT,BLACK,UL94V-0
Contact material:OD=0.46mm gold plating with over nickel( RoHS )
Gold plating:1.5u” Optional
Shielding Shell: 0.2 mm thickness Copper alloy with Nickel Plating over all
All materials mates with modulat plug conforming to FCC part 68. subpart F.
RJ45 Female to Female adapter (TMZT8811SX004211111000) Product Structure:
RJ45 Modular Jack
One to one Port
Connector Length: 30.6 mm
Connector Width: 14.4 mm
Connector Height: 16.0 mm
8P8C ( 8 positions 8 contacts )
180°Orientation
Without LED, let know the connection status
Without Shield,can be customized as required
We Support Custom service as required
RJ45 Female to Female adapter (TMZT8811SX004211111000) Attributes:
| Model: | TMZT8811SX004211111000 |
| Place of Origin: | Guangdong of China |
| Certification: | UL,Rohs,Reach,ISO9001 |
| Product Type : | RJ45 Modular Connector |
| Jack Type: | RJ45 |
| Number of Positions : | 8 |
| Terminals per Port: | 8 |
| LED Option: | No |
| Shielded EMI Tabs: | No |
| Voltage rating: | 125 V |
| Current rating: | 1.5 A |
| Contact resistance: | 30mΩ |
| Insulation resistance: | 500 MΩ MIN @ 500V DC |
| Dielectric resistance: | 1000V AC RMS 50Hz. 1MIN |
| Durrability: | 750 CYCLES MIN |
| Minimal Order: | 2000 pcs |
| Package: | 100pcs/bag |
| Carton size: | / |
| Delivery Time: | 20 Days |
| Payment Terms: | T/T, Western Union,Paypal |
| Supply Ability: | 500K/year |
RJ45 Female to Female adapter ( TMZT8811SX004211111000) Drawing:
