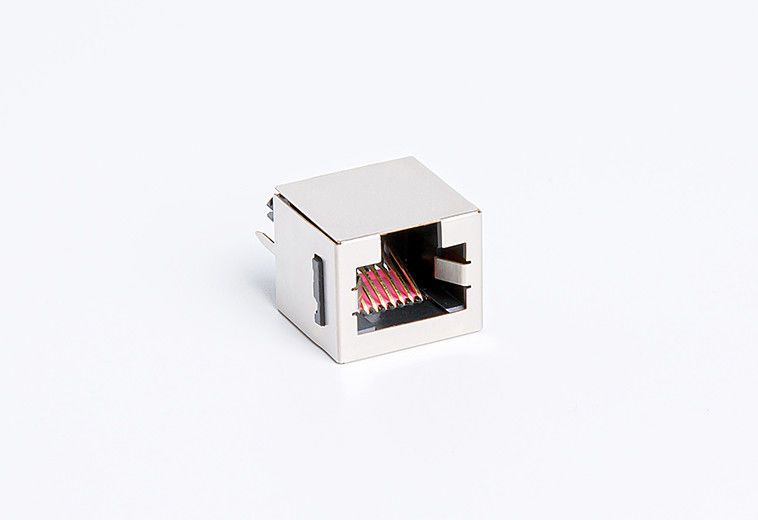

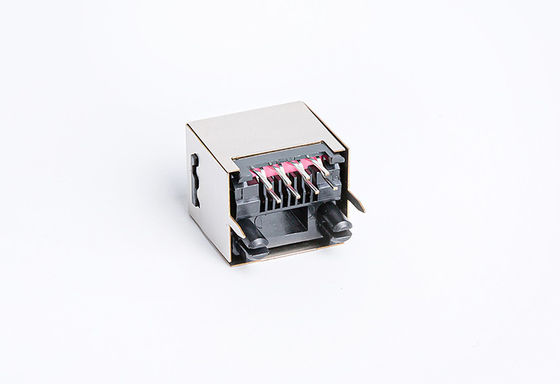

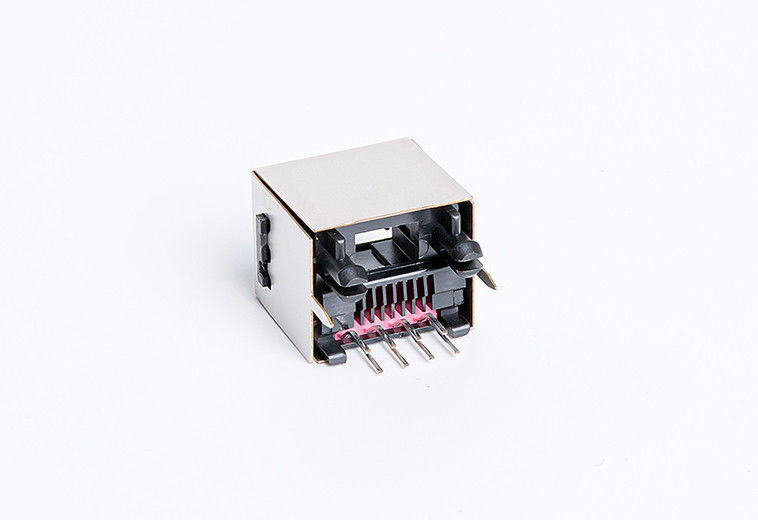

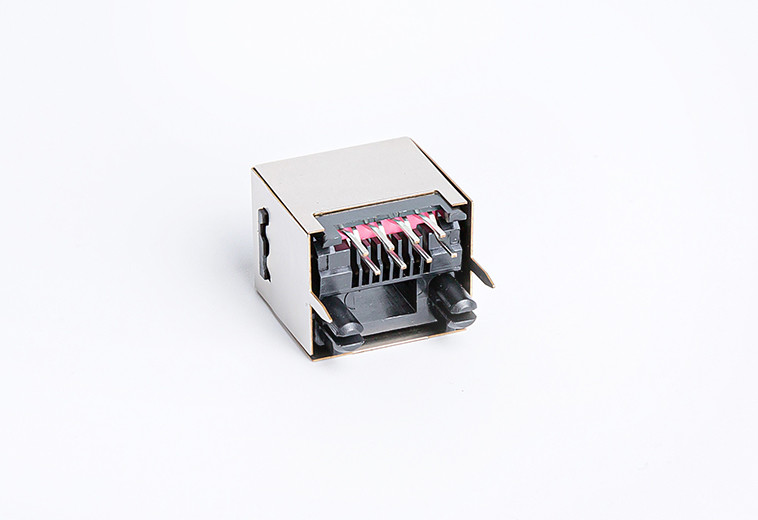

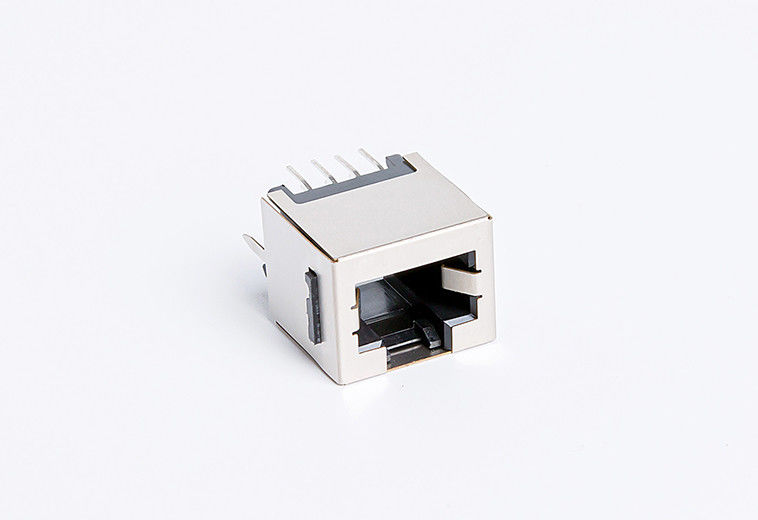

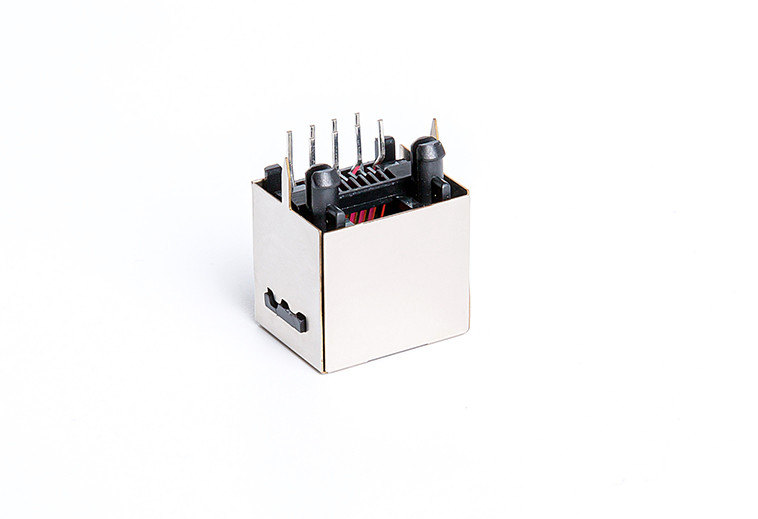

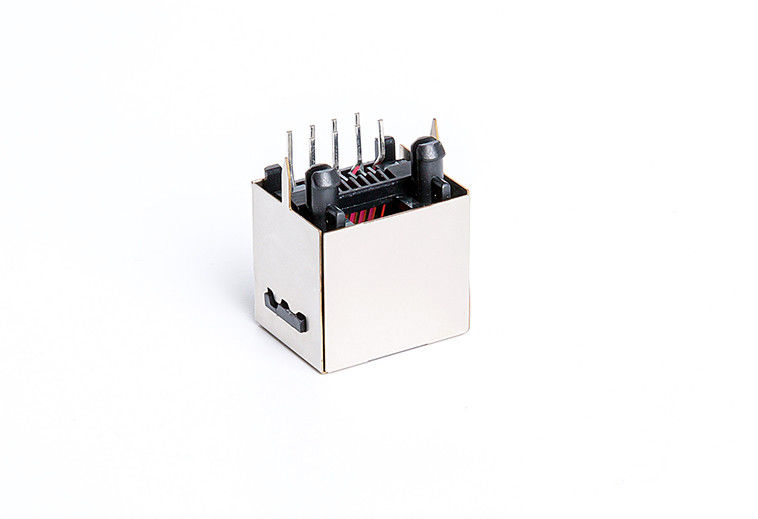

rj45 pcb mount connector Shielded Single Port PCB Board Wire Terminal 15.8 Mm TM52T811EXX11
rj45 pcb mount connector Shielded Single Port PCB Board Wire Terminal 15.8 Mm TM52T811EXX11 rj45 pcb mount connector Shielded Single Port PCB Board Wire Terminal 15.8 Mm TM52T811EXX11 rj45 pcb mount connector Shielded Single Port PCB Board Wire Terminal 15.8 Mm TM52T811EXX11 rj45 pcb mount connector Shielded Single Port PCB Board Wire Terminal 15.8 Mm TM52T811EXX11 rj45 pcb mount connector Shielded Single Port PCB Board Wire Terminal 15.8 Mm TM52T811EXX11
Contact Now

rj45 pcb mount connector Shielded Single Port PCB Board Wire Terminal 15.8 Mm TM52T811EXX11

Minimum Order Quantity : 1 piece Price : please contact us to get the latest price
Packaging Details : Tray in Carton Delivery Time : 4 work days
Payment Terms : T/T, Western Union, ,Paypal Supply Ability : 100kpcs /day
Place of Origin: Guangdong of China Brand Name: TM
Certification: UL,Rohs,Reach,ISO9001 Model Number: TM52T811EXX11

Detail Information
Product Type : RJ45 Modular Connector Jack Type: RJ45
Number Of Positions: 8 Terminals Per Port: 8
LED Option: NO LED Shielded EMI Tabs: YES
Highlight:

rj45 pcb mount jack

,

pcb mount rj45 connector

Product Description

rj45 pcb mount connector Shielded Single Port PCB Board Wire Terminal 15.8 Mm TM52T811EXX11



1. Materials:

  • Housing : PBT,UL94V-0 ( RoHS )
  • Insert: PBT,UL94V-0 ( RoHS )
  • Contact Finish: φ0.46 mm Phosphor Bronze gold plating(Fu” ~50u”Optional) over nickel
  • Shielding Shell: 0.2 mm thickness Copper alloy with Nickel Plating over all
  • All materials mates with modulat plug conforming to FCC part 68. subpart F.

2. Product Structure:

  • RJ45 Modular Jack
  • 1 x 1 Port / Single Port / One Port
  • Latch Up
  • RJ45 Connector Length: 15.8 mm
  • RJ45 Connector Width: 16.6 mm
  • RJ45 Connector Height: 13.3 mm
  • Termimal Solder Pin Length: 3.1 mm
  • 8P8C ( 8 positions 8 contacts )
  • 180°Orientation
  • Without LED, let know the connection status
  • Without EMI Tabs, can be customized as required
  • We Support Custom service as required



3. RJ45 Without Transformer ( TM52T811EXX11) Attributes:

Model: TM52T811EXX11
Place of Origin: Guangdong of China
Certification: UL,Rohs,Reach,ISO9001
Product Type : RJ45 Modular Connector
Jack Type: RJ45
Number of Positions : 8
Terminals per Port: 8
LED Option: NO LED
Shielded EMI Tabs: YES
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 2000pcs
Package: 100pcs/tray,2000pcs/carton
Carton size: 40*28.5*16.5cm
Delivery Time: 15 Days
Payment Terms:
Supply Ability: 5KK/year



4. RJ45 Female Connector ( TM52T811EXX11) Mechnical Drawing:

rj45 pcb mount connector Shielded Single Port PCB Board Wire Terminal 15.8 Mm TM52T811EXX11 0rj45 pcb mount connector Shielded Single Port PCB Board Wire Terminal 15.8 Mm TM52T811EXX11 1rj45 pcb mount connector Shielded Single Port PCB Board Wire Terminal 15.8 Mm TM52T811EXX11 2rj45 pcb mount connector Shielded Single Port PCB Board Wire Terminal 15.8 Mm TM52T811EXX11 3rj45 pcb mount connector Shielded Single Port PCB Board Wire Terminal 15.8 Mm TM52T811EXX11 4
