Single Port RJ11 PCB Jack 6 Pins 6 Contacts Shiled EMI Leds TM-52T6611ET2L1
Contact Person : David
Phone Number : 15972107349
| Minimum Order Quantity : | 500/1000/2000 pcs | Price : | Supportive |
|---|---|---|---|
| Packaging Details : | 60pcs/tray,1200pcs/carton | Delivery Time : | 15 Days |
| Payment Terms : | T/T, Western Union, ,Paypal | Supply Ability : | 500K/year |
| Place of Origin: | Guangdong of China | Brand Name: | TM |
|---|---|---|---|
| Certification: | UL,Rohs,Reach,ISO9001 | Model Number: | TM59B521EXX11 |
|
Detail Information |
|||
| Product Type : | RJ11 Modular Connector | Jack Type: | RJ11 |
|---|---|---|---|
| Number Of Positions: | 6 | Terminals Per Port: | 6 |
| LED Option: | No | Shielded EMI Tabs: | No |
| Voltage Rating: | 125 V | Current Rating: | 1.5 A |
| Contact Resistance: | 30mΩ | Insulation Resistance: | 500 MΩ MIN @ 500V DC |
| Dielectric Resistance: | 1000V AC RMS 50Hz. 1MIN | Durrability: | 750 CYCLES MIN |
| Minimal Order: | 500pcs | Package: | 60pcs/tray,1200pcs/carton |
| Highlight: | rj11 pcb mount connector,rj11 modular plug,6 Positions RJ11 Shielded Connector |
||
Product Description

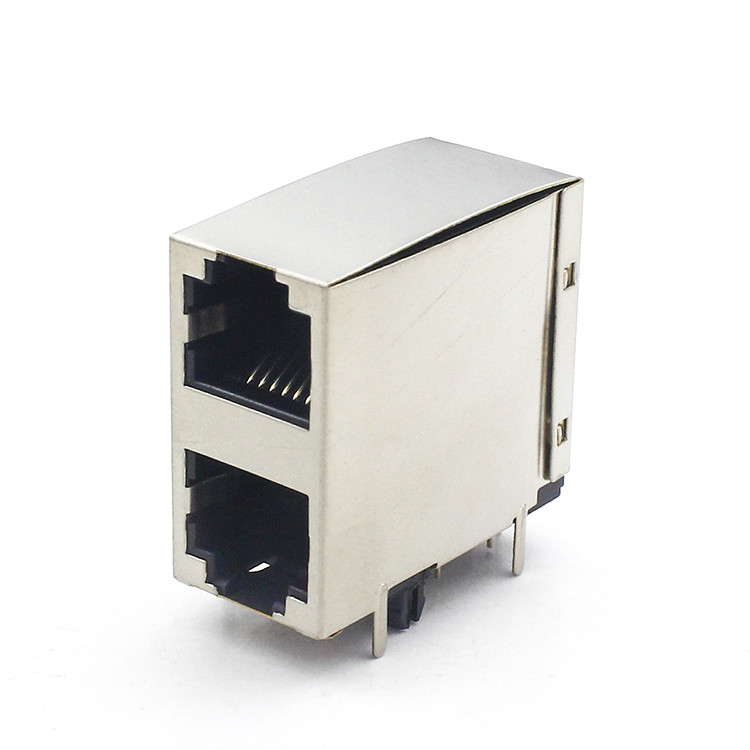

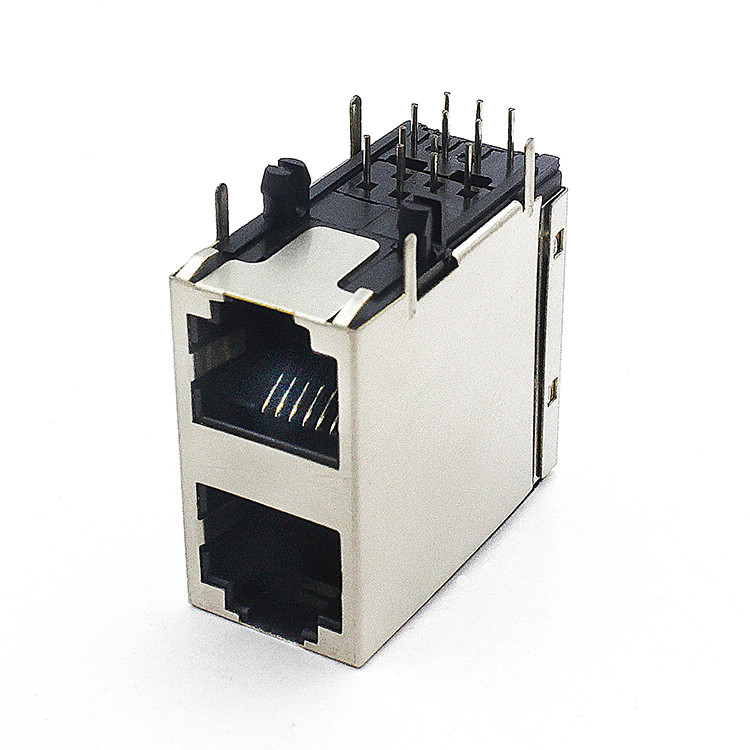

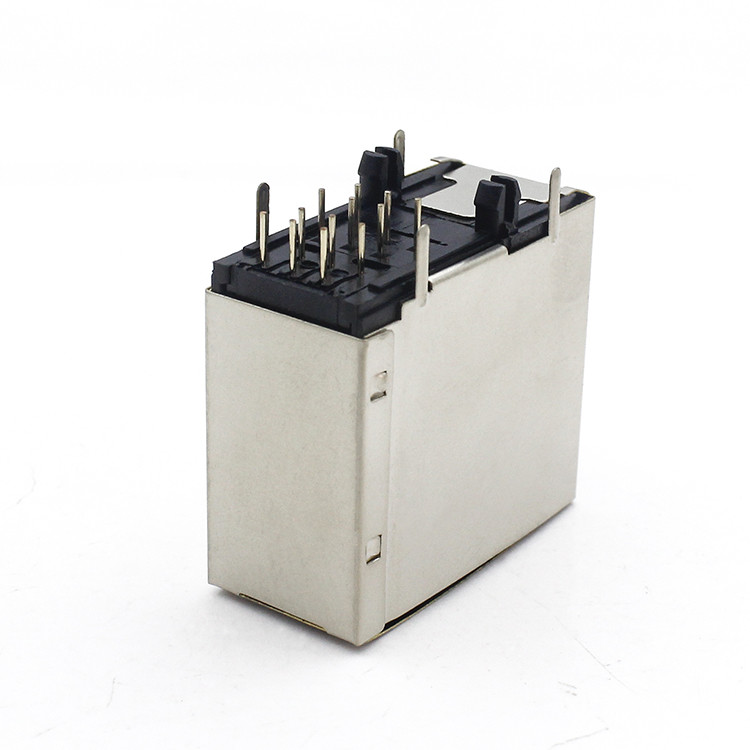

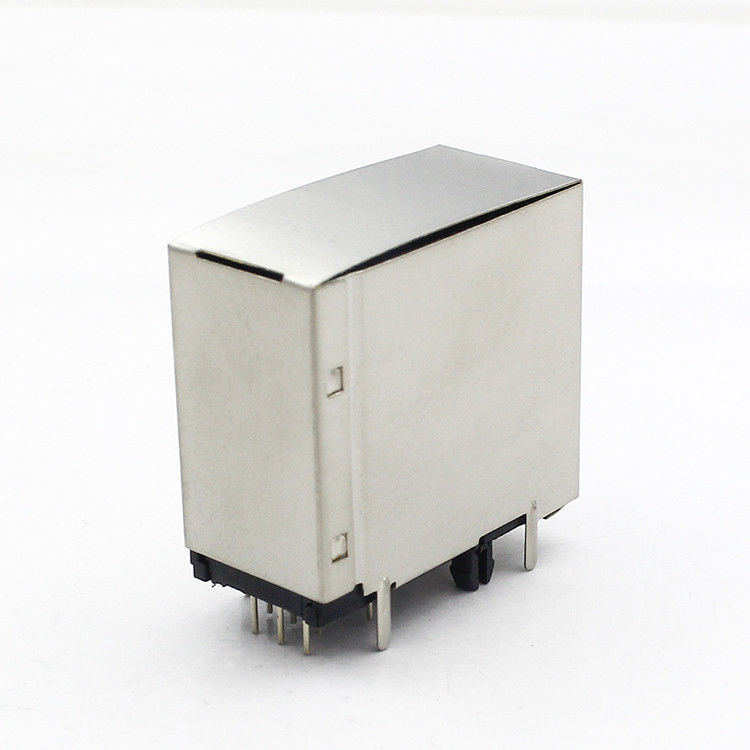

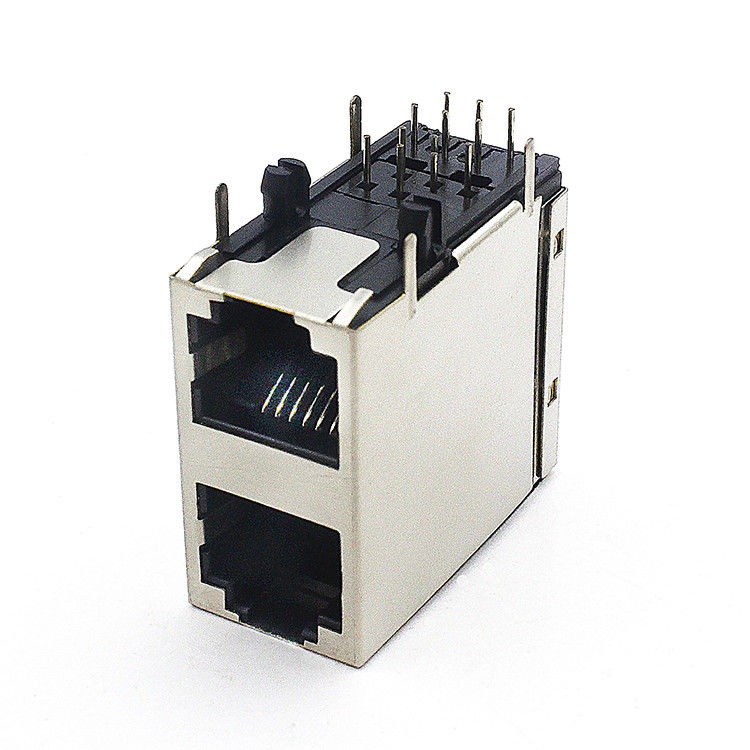

6P6C shield 2X1 Port 90 Degree rj11 modular connector With Shield TM59B521EXX11
Materials:
Housing:PBT,UL94V-0 ( RoHS )
Contact Finish: φ0.46 mm Phosphor Bronze gold plating Fu”(Optional) over nickel
Shielding Shell: 0.2 mm thickness Copper alloy with Nickel Plating over all
All materials mates with modulat plug conforming to FCC part 68. subpart F.
Product Structure:
RJ11 Modular Jack
2 x 1 Port / Single Port / Two Port
Connector Length: 28.2 mm
Connector Width: 13.79 mm
Connector Height: 25.3 mm
Termimal Solder Pin Length: 3.25 mm
6P6C ( 6 positions 6 contacts )
90°Orientation
Without LED, let know the connection status
With Shield,can be customized as required
We Support Custom service as required
RJ11 Without Transformer (TM59B521EXX11) Attributes:
| Model: | TM59B521EXX11 |
| Place of Origin: | Guangdong of China |
| Certification: | UL,Rohs,Reach,ISO9001 |
| Product Type : | RJ11 Modular Connector |
| Jack Type: | RJ11 |
| Number of Positions : | 6 |
| Terminals per Port: | 6 |
| LED Option: | No |
| Shielded EMI Tabs: | No |
| Voltage rating: | 125 V |
| Current rating: | 1.5 A |
| Contact resistance: | 30mΩ |
| Insulation resistance: | 500 MΩ MIN @ 500V DC |
| Dielectric resistance: | 1000V AC RMS 50Hz. 1MIN |
| Durrability: | 750 CYCLES MIN |
| Minimal Order: | 1pcs |
| Package: | 60pcs/tray,1200pcs/carton |
| Delivery Time: | 20 Days |
| Supply Ability: |
5KK/year |
RJ11 Female Connector (TM59B521EXX11) Mechnical Drawing:
